PET Plastic Bottle Washing Line Complete Recycling Solution For PP PE HDPE Film Bottle

Contact Now

PET Plastic Bottle Washing Line Complete Recycling Solution For PP PE HDPE Film Bottle

Minimum Order Quantity :	1	Price :	USD 98000-120000
Delivery Time :	55-65 DAYS	Payment Terms :	L/C, D/A, T/T, D/P
Supply Ability :	1 SET PER 55 DAYS

Place of Origin:	China	Brand Name:	MOOGE
Certification:	CE	Model Number:	MT

Detail Information
Plastic Type:	PP PE HDPE Film(bottle)	Final Product:	Clean Plastic Flakes
Keywords:	PET Bottle Washing Line	Raw Material:	Waste PE PP Film
After-sales Service Provided:	Engineers
Highlight:	PET Plastic Bottle Washing Line , PET Plastic Bottle Recycling Line , HDPE Plastic Bottle Washing Line

Product Description

Why Choose Us

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Product Overview

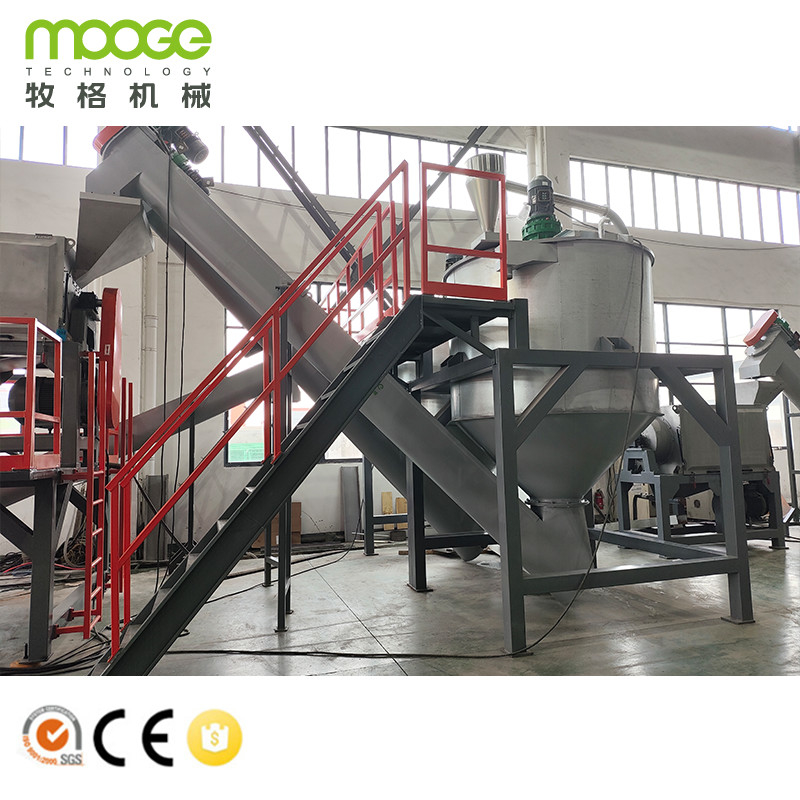

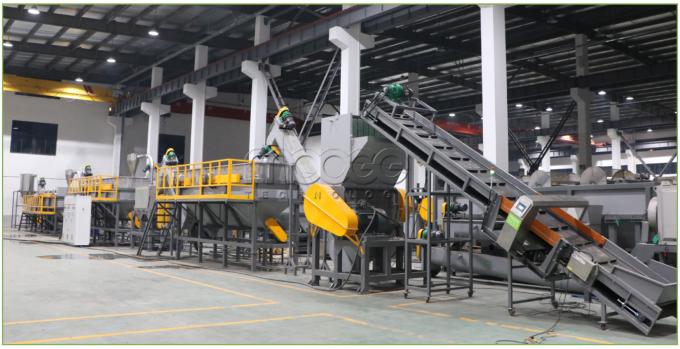

This Waste Plastic Pp Pe Hdpe Bottle Chips Recycling Machine Line is used to recycling the waste HDPE PE Bottles and buckets, PP hollow container, ABS rigid plastic and so on.The whole recycling line including the conveyor belt, metal detector, plastic wet crusher, cold water washing tank, high speed friction washer, centrifugal dryer machine, hot air drying system and label separator machine, material collecting packing system.

After crushing, washing and drying, the waste dirty rigid plastic will turn to be small clean dry plastic flakes with size range from 10-16mm, we can also make the size reduction as you requirement.

Product Specification

The Hdpe Bottle Recycling Pp Pe Bottle Barrel Crushing Washing Machine we made with capacity from 300kg/h to 3000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's requirements.

Model	Capacity	Installed Power	Water Supply	Area Required
MT-500	500kg/hr	190KW	4-5m³/hr	6055 m
MT-1000	1000kg/hr	260KW	5-7m³/hr	8085 m
MT-2000	2000kg/hr	400KW	10-15m³/hr	8085 m
MT-3000	3000kg/hr	600KW	20-30m³/hr	100810 m
MT-4000	4000kg/hr	800KW	30-40m³/hr	1351010 m
MT-5000	5000kg/hr	1000KW	40-50m³/hr	1351010 m

We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request

Item	Specification
Raw Material	Waste Rigid Plastic PE bottle, HDPE barrel, PP bucket, PS Box, ABS shell, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Belt Conveyor, Shredder, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Hot Air Pipeline, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Details Images

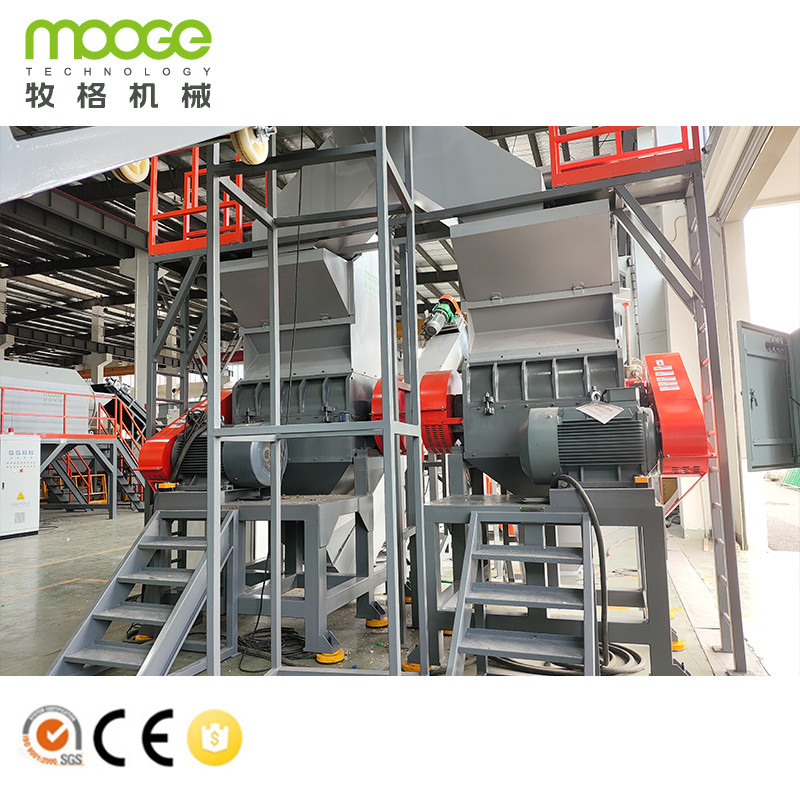

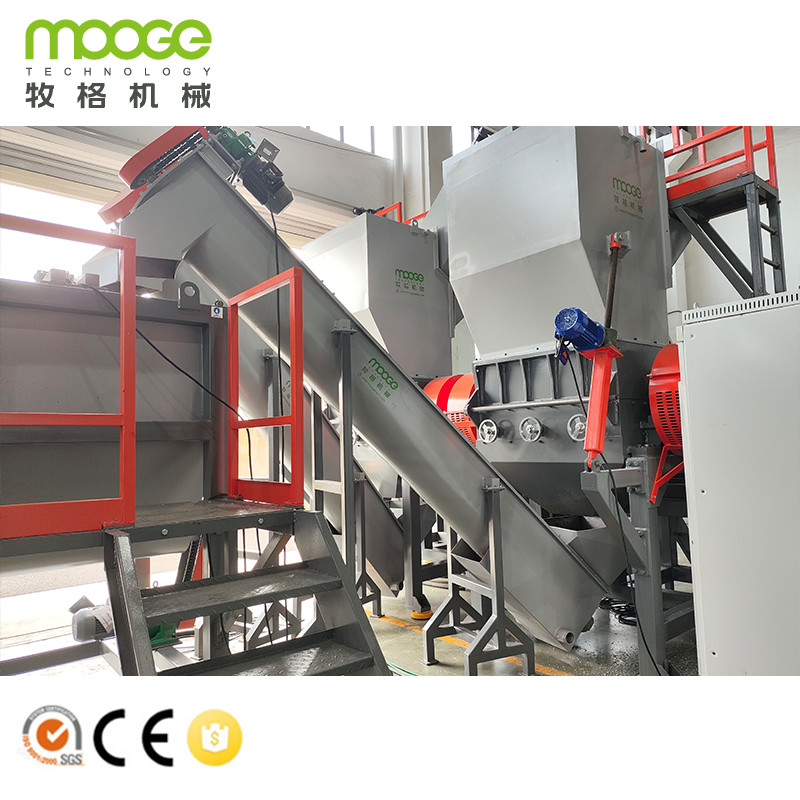

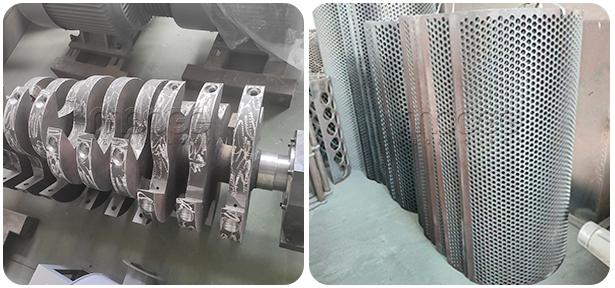

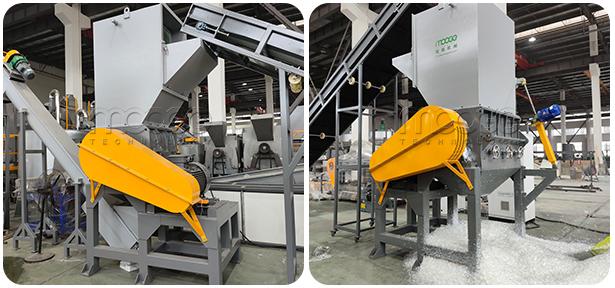

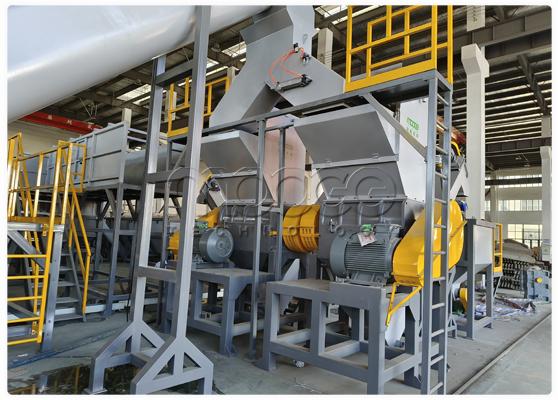

Plastic Crusher Machine

Function: crushing the material into flakes

>With water inlet can do wet crushing

>Use big roller bearing ensure durable use

>With heavy duty pulley easier for machine working
>Bearing house is installed outside of the chamber so no dirty goes inside which prolong the lifespan
> Upside hopper is covered by shelter so no flakes popped out.

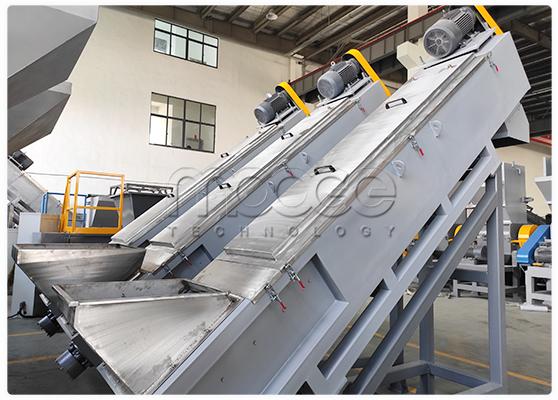

Friction Washing Loader

Function: Friction washing the material and loading up it

>With water injection system into the rotor for better washing and also clean the screen mesh
>The screen is with fast clip to tight and loose for easy maintenance
>Up and down both mounted with bearing design ensure low maintenance and long use life

>Material contact with water are made of SUS304

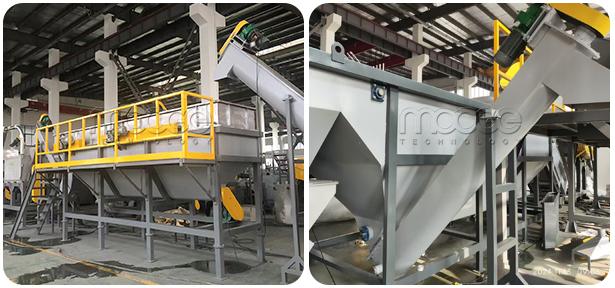

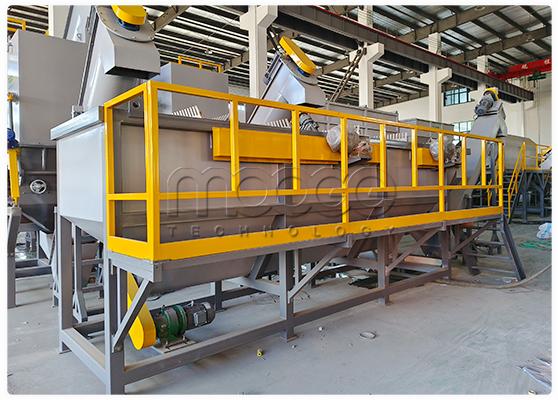

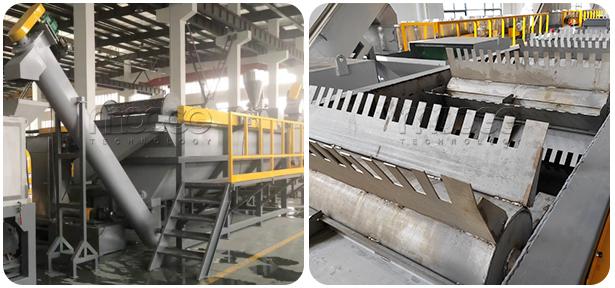

Floating Washing Tank

Function: Floating washing separate the sand, soil and other dirties

>The roller is specially made can have more washing for flakes but less water take out
>Bottom with positive and negative screw to pushing the dirty which is easy for the side screw loader to loading out

>The washing tank can be made with cover and double layer temperature protection for hot water washing

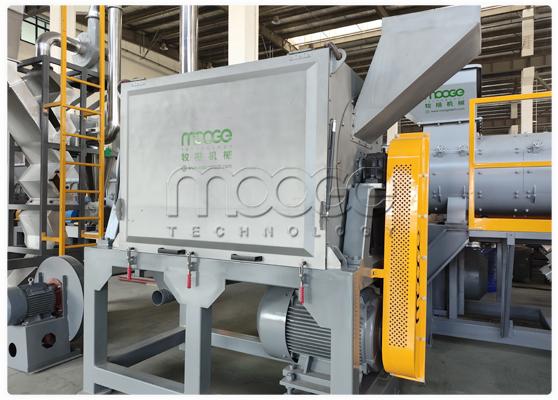

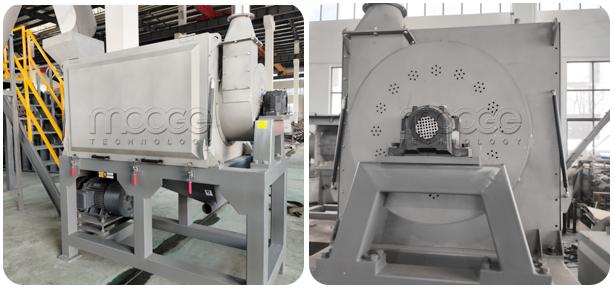

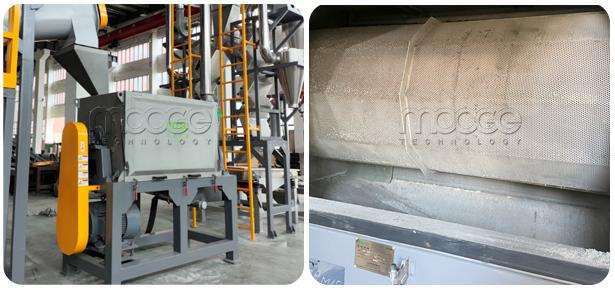

Horizontal Dewatering Machine

Function: take out dirty and remover water from the bottle flakes

>With high rotary speed 1500rpm

>Roller bearing is fixed outside of the rotor for durable use
>Inside with mesh layer, mesh diameter size: 3mm
>With water spray system to clean the mesh
>Outside cover drum is made by stainless steel with 3mm thickness

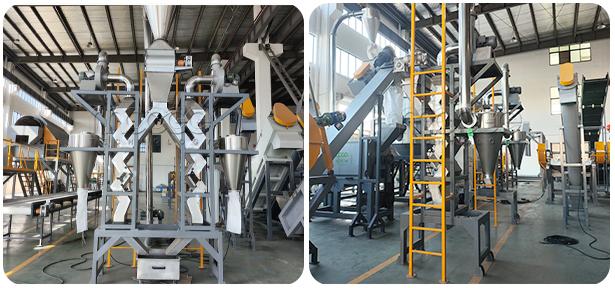

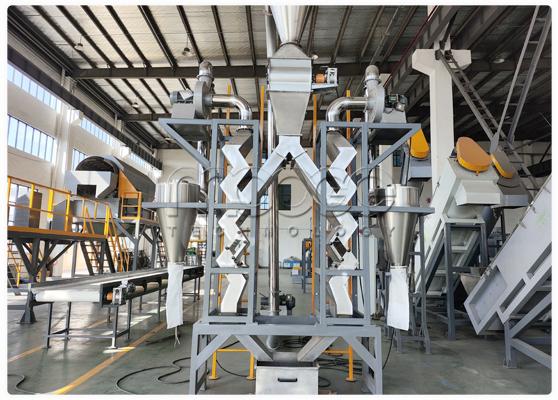

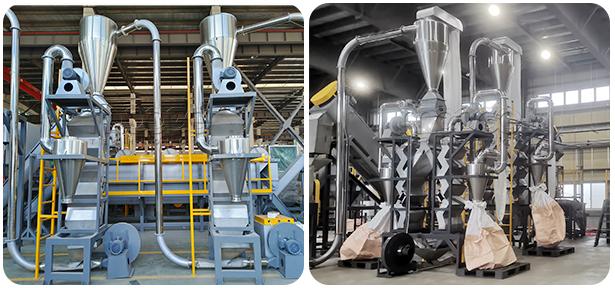

“Zig-zag” Label Separator

Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.

>Blower with air valve to control the air flux of blower.
>Bottom with air blower and pipe for collecting the pet flakes
>Zig zag main chamber one set made by stainless steel and with visible window

Customer Onsite

We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine
and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the
long-term business partner all over the world.

Marketing Campaign

We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine for test run at th booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
