L U Shape Plastic Washing Recycling Machine 5000kg/H PET Bottle

Contact Now

L U Shape Plastic Washing Recycling Machine 5000kg/H PET Bottle

Price :	$80,000.00/sets 1-1 sets	Packaging Details :	Standard export packaging for waste pet bottle washing recycling machine
Supply Ability :	50 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE TECH
Certification:	CE ISO SGS

Detail Information
Application:	Plastic Recycling	Condition:	New
Automatic Grade:	Automatic	Plastic Type:	PET
Production Capacity (kg/h):	500 - 5000	Machine Type:	PET Bottle Washing Line
Equipment List:	Trommer, Pre-washer, Bale Opener, Dewatering Machine, Floating Washing Tank, Hot Air Dryer, Frication Washer, Label Separator, Label Remover, Hot Washing Tank	Max.Production Capacity (kg/h):	5000
Voltage:	380V 50HZ	Dimension(LWH):	5553.5m
Warranty:	12MONTHS	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Applicable Industries:	Manufacturing Plant
Showroom Location:	Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Manpower:	5-20 Person
Motor Brand:	SIEMENS	Water Supply:	5-50 CBM Per Hour
Material Of Washing Part:	Stainless Steel	Reducer Brand:	Changzhou Guomao
Steam Use:	Optional	Bearing:	NSK
Electric Heating Power:	60KW	Pet Flakes:	14-16mm
Inverter:	ABB Delta	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile,	Port:	Shanghai
Highlight:	120kw L shape Plastic Washing Recycling Machine , 120kw U shape Plastic Washing Recycling Machine , 120kw 5000kg/h pet bottle recycling washing machine

Product Description

Waste plastic recycling machine sale/Uesd pet bottle washing recycling plant

Product Overview

This Waste plastic pet bottle recycling washing machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PET material, such as water bottles, pet sheet, pet containers, etc.
The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.

Product Specification

Model	Capacity	Installed Power	Steam Use	Water Supply	Area Requied
MT-500	500 kg/hr	185 KW	Optional Choose	4-5 m³/hr	553.54.5 m
MT-1000	1000 kg/hr	315 KW	Optional Choose	5-6 m³/hr	6254.5 m
MT-2000	2000 kg/hr	450 KW	Suggest Use	10-15 m³/hr	8065 m
MT-3000	3000 kg/hr	600 KW	80000 Kcal	20-30 m³/hr	10085.5 m
MT-4000	4000 kg/hr	800 KW	100000 Kcal	30-40 m³/hr	13586.5 m
MT-5000	5000 kg/hr	1000 KW	120000 Kcal	40-50 m³/hr	13586.5 m

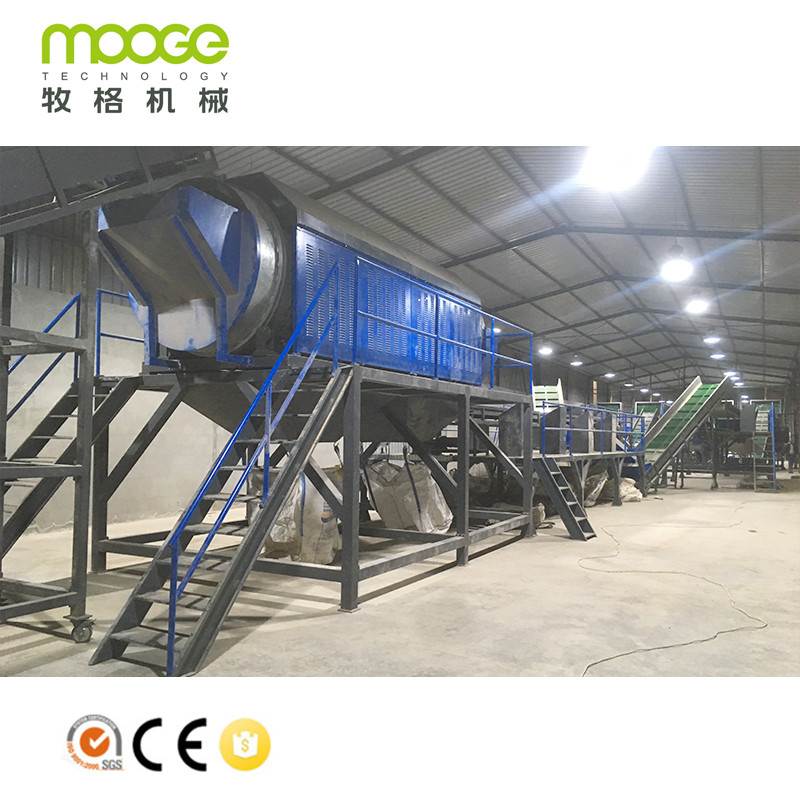

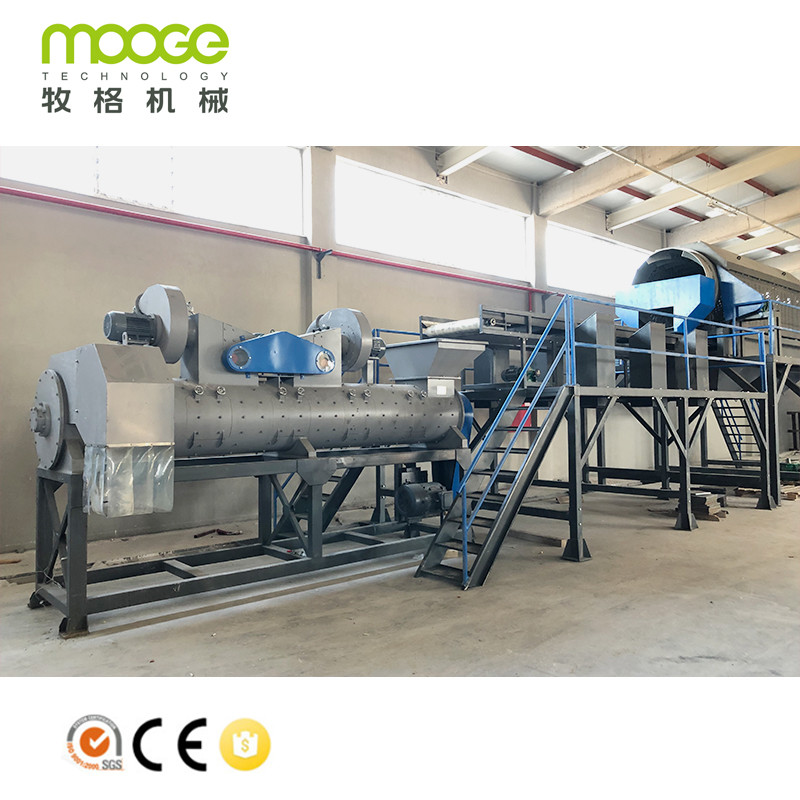

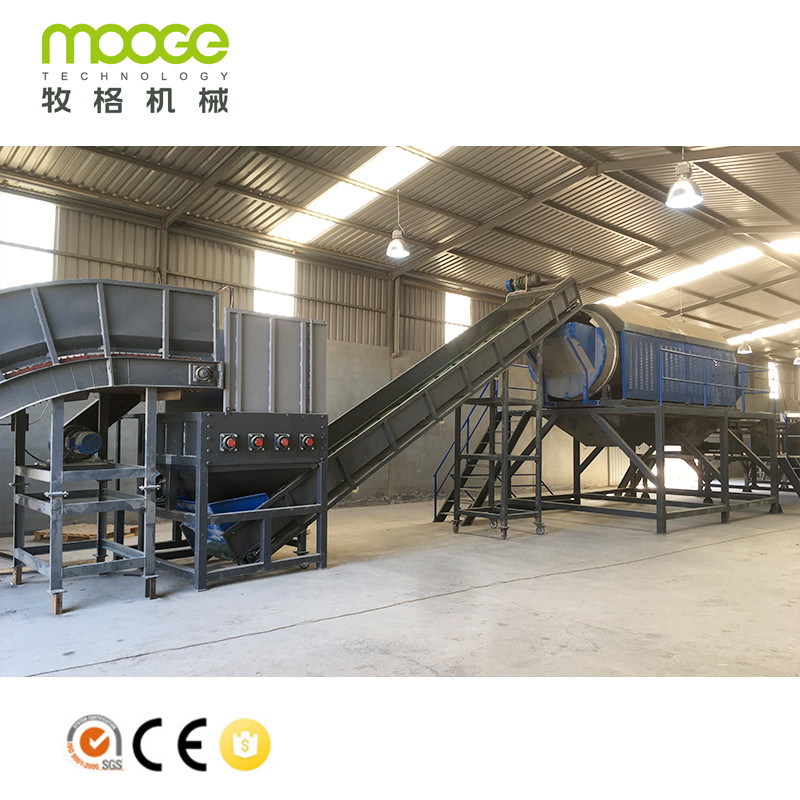

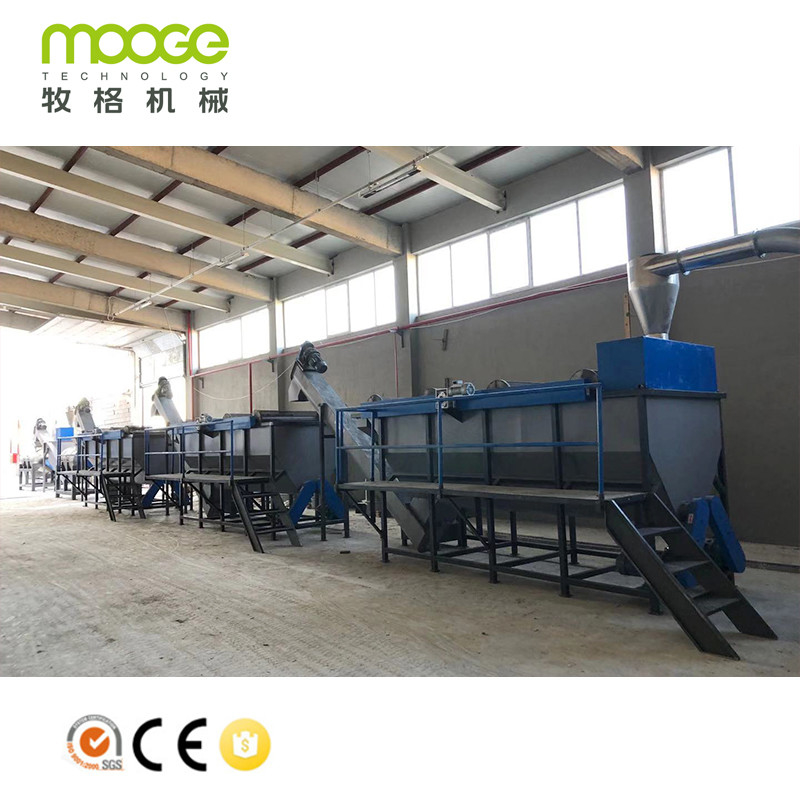

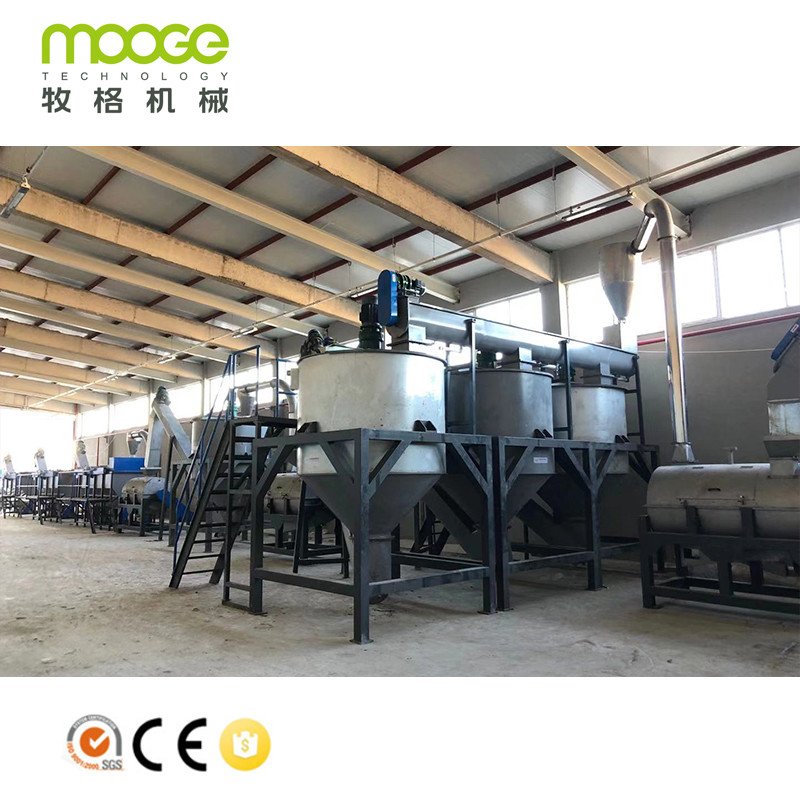

L U Shape Plastic Washing Recycling Machine 5000kg/H PET Bottle 0

Machine Details

Bale Opener

Function: Opening the PET bottle bales and scatter the bottles

Trommel Machine

Function: Loosen the bottles, remove the sand or stone from bottles, feeding out bottles constantly

Label Remover Machine

Function:Remove out the labels from the waste PET bottles

Pre-washer Machine (Optional Choice)

Function: With hot steam to pre-wash the bottles and remove out the dirty

Manual Sorting Belt (with high platform)

Function: Sorting out the remain labels manually, selecting out different color and Non-PET bottles

Plastic Crusher Machine

Function: Crushing the bottles into small flakes, wet working with water

Floating Washing Tank

Function: Washing out the floating caps, rings and dirty from the bottle flakes

Hot Washer Tank

Function: With hot water and chemical reagent to washing off the oil, glue and dirty

Horizontal Dewatering Machine

Function: Remove the water from the bottle flakes

Pipe Drying System

Function: With hot air drying the bottle flakes

Zig-zag Air Classifier

Function: Remove residual fines/dust/labels

Color Sorter (Optional Choice)

Function: Sorting out the different color of flakes

Related Product

We also supply plastic strap production line which is mainly used to make different sizes of pet straps with virgin or recycled pet flakes.
PET packing strap is widely used to replace the steel strap for packing carton, wooden case, etc. It is popular with its good tensile strength, non-rustiness, and low use-cost.

With this plastic strap production line, we can achieve the purpose of protecting our environment by reusing the waste plastic.

Packing & Delivery

• For the loose cargo we will packing by wooden box.
• For the full container loading we are packing the machine by film and some on pallet accordingly.
• We can also ship the goods by air or by sea as buyer request.
• We will send pictures of cargo loading to our client to check and keep recording.
• We can send cargo to client's warehouse to loading.

Company Profile

We attend the Chinaplas Exhibition every year (In Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend, Sincerely welcome to our booth for visit and discuss about detailed issues.

Our Service

• Pre-sale: we provide our client the detailed technical offer, the sales contract etc.
• In-sales: we supply the machine layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.

In order to match your requirement and provide you a proper offer, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity(kg/h) do you want? such as 500kg/hr or 1000kg/hr?
• What is the final size(mm) of flakes you want?
• Other special requirements about the pet bottle washing machine if you have?
