120kw 50hz Plastic Recycling Washing Line , 1500kg/H PET Washing Line

Contact Now

120kw 50hz Plastic Recycling Washing Line , 1500kg/H PET Washing Line

Price :	$150,000.00/sets 1-1 sets	Packaging Details :	Waste Plastics Recycling Machines in China will be Wrapped up in film and packed in wooden case
Supply Ability :	12 Set/Sets per Year

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE TECH
Certification:	CE ISO9001

Detail Information
Application:	Plastic Recycling Machine	Condition:	New
Automatic Grade:	Automatic	Plastic Type:	PP/PE
Production Capacity (kg/h):	300 - 1500	Machine Type:	PP PE Film Washing Line
Equipment List:	Dewatering Machine, Floating Washing Tank, Hot Air Dryer, Frication Washer, Hot Washing Tank	Max.Production Capacity (kg/h):	1500
Voltage:	380v 50hz 3 Phase And Costumed	Dimension(LWH):	23m5m3.5m
Power (kW):	120KW	Weight (T):	20
Warranty:	1 Year	Key Selling Points:	Competitive Price
Video Outgoing-inspection:	Provided	Applicable Industries:	Plastic Recycling Machine
Showroom Location:	Indonesia, Thailand, Malaysia	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Name:	Waste Plastics Recycling Machines In China
Contactor:	Schneider	Converter:	Delta
PLC:	SIEMENS	Motor:	SIEMENS Or Customized
Manpower:	1-5 Persons	FILM SIZE:	<50MM
Moisture:	<1%	Gule:	<10ppm
Machine Material:	Stainless Steel	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Indonesia, Thailand, Malaysia	Port:	Shanghai Port For Waste Plastics Recycling Machines In China
Highlight:	120kw 1500kg/h 120kw plastic recycling washing line , 120kw 1500kg/h 50hz plastic recycling washing line , 120kw 1500kg/h pet washing line

Product Description

Waste Plastics Recycling Machines in China

Product Overview

This Waste Plastics Recycling Machines in China is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.

Product Specification

Model	Capacity	Installed Power	Hot Washing	Water Supply	Area Required(LWH)
ME-300	300 kg/hr	200 kw	Optional	6-8 m³/hr	4045 m
ME-500	500 kg/hr	350 kw	Optional	8-10 m³/hr	4045 m
ME-1000	1000 kg/hr	600 kw	Optional	15-20 m³/hr	5566 m

Details Images

Crusher Machine

Function: Crushing the film/bags into small pieces, wet working with water, can also choose shredder instead

Floating Washing Tank

Function: Washing out the dirty from the film or bags material by paddles, tank material is made by SUS 304

High Speed Friction Washer

Function: Washing out the sand, soil and dirty water from the material with high rotary speed 1500 rpm, machine contact the material is made by SUS304

Hot Washer Tank

Function: With hot water and chemical reagent to washing off the oil, glue and dirty(This is optional choice), machine contact the material is made by SUS304

Film Dewatering Machine

Function: Remove the water out from the material, machine contact the material is made by SUS304

Pipe Drying System

Function: With hot air further drying the material, machine contact the material is made by SUS304

Related Product

We also supply PLASTIC PE FILM/PP BAGS PELLETIZING LINE (plastic granulator) to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.

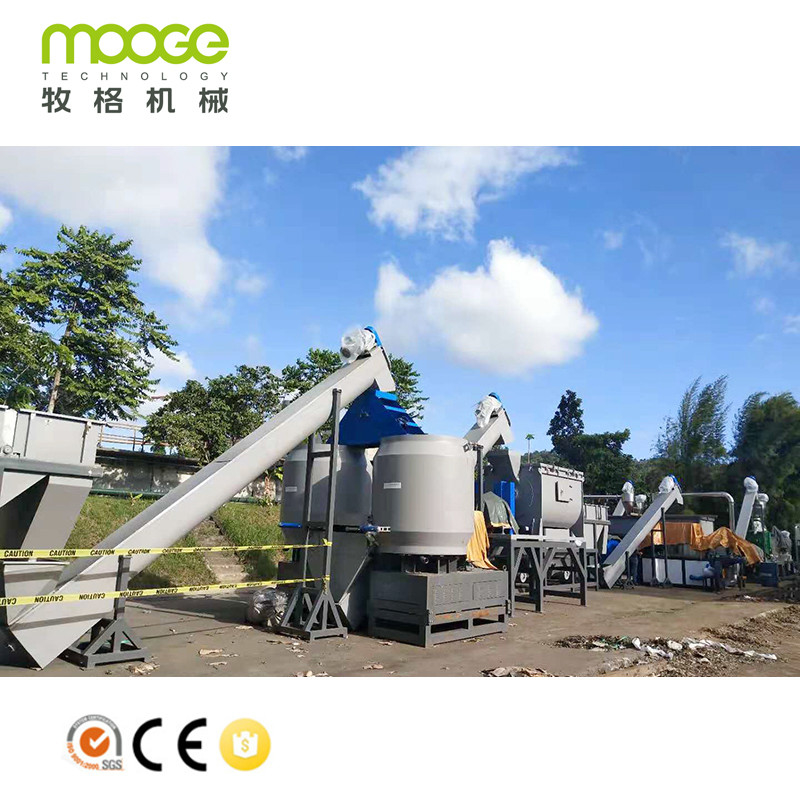

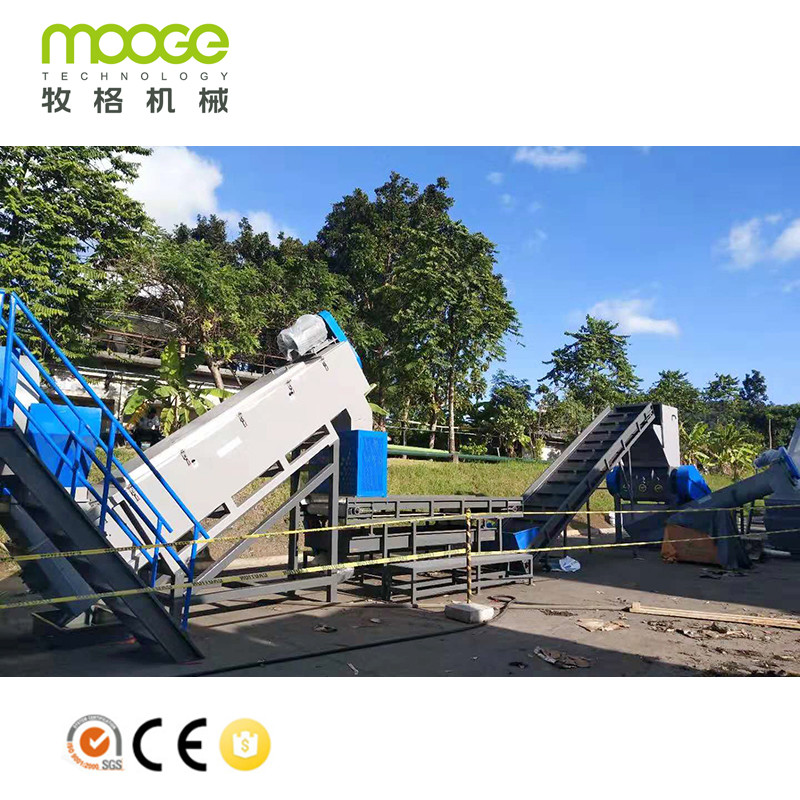

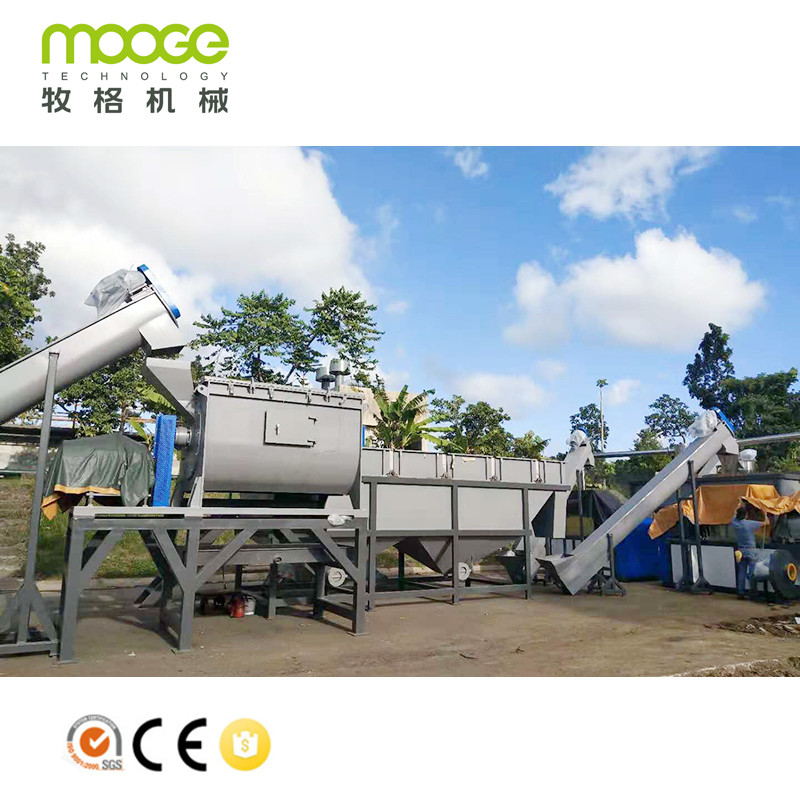

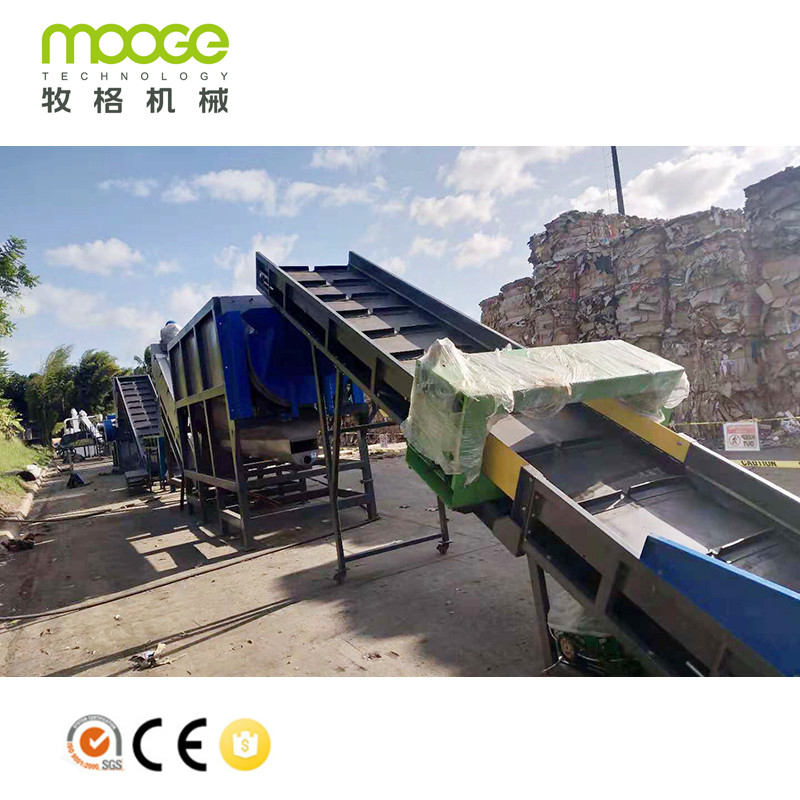

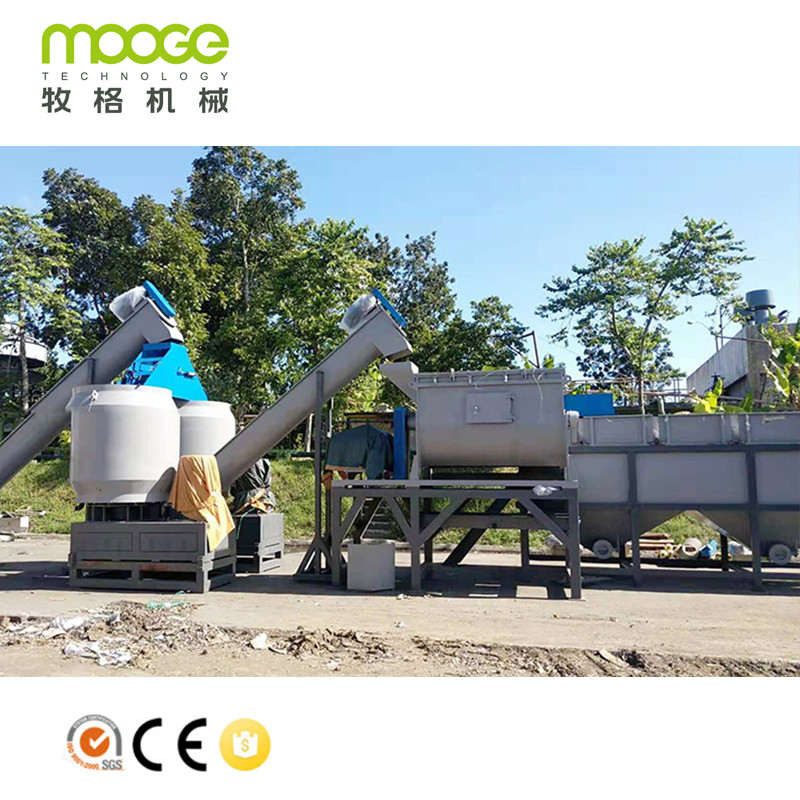

Customer Onsite

ME-300

Plastic Film/Bags Washing Line

ME-500

Plastic Film/Bags Washing Line

ME-1000

Plastic Film/Bags Washing Line

Company Profile

MOOGE TECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better.

We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine for test run at th booth.

Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc.

Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.

Our Service

• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.

In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of flakes you want?
• Other special requirements about the PE film PP bags plastic recycling machine?
