PLC PET Bottle Label Remover Machine Stainless Steel 5000kg/H Label Removing

Contact Now

PLC PET Bottle Label Remover Machine Stainless Steel 5000kg/H Label Removing

Price :	$13,000.00/sets 1-1 sets	Packaging Details :	label remover machine will be Wrapped up in Film or packed in wooden cases
Supply Ability :	10 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	mooge

Detail Information
Application:	PET Bottle Recycling	Condition:	New
Automatic Grade:	Automatic	Plastic Type:	PET
Production Capacity (kg/h):	500 - 5000	Machine Type:	PET Bottle Washing Line
Equipment List:	Label Remover	Max.Production Capacity (kg/h):	5000
Voltage:	Customer Standard	Dimension(LWH):	400018003800mm
Power (kW):	30KW	Weight (T):	2
Warranty:	1 Year	Key Selling Points:	Competitive Price
Video Outgoing-inspection:	Provided	Applicable Industries:	Plastic Recycling Machine
Showroom Location:	Viet Nam, Indonesia, Thailand, Malaysia	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear	Motor Brand:	Siemens Brand
Material:	Stainess Steel	Blades:	D-2
Raw Material:	PET Bottle Waste	Control:	Electric Control
Inverter:	ABB Brand	Gearbox:	Guomao
Label Remove Effective:	98%	Bearing Brand:	NSK
Rotor Diameter:	600mm	Port:	Shanghai Port For Pp Pe Film Granul
Highlight:	PLC PET Bottle Label Remover Machine , stainless steel PET Bottle Label Remover Machine , 5000kg/h label removing machine

Product Description

PET plastic bottle label removing machine made in china

Products Description

Label remover machine completely changes the status of artificial stripping label.At the same time ,the label remover machine greatly improves the production efficiency, reduces labor intensity and makes good economic and social benefits.
The working principle of PET bottle stripping machine:after feeding ,the bottles will be delivered to the discharge port by shaft where equipped with 116 alloy blades and show a certain angle and spiral rotation with centerline.The alloy blade on the blade stripped the label. Then there is a separation chamber to separate the peeled label from the PET bottles.
The label sheet is blown out from the fan, the bottles will go on the next process.

Product Paramenters

Model	LMD-7.5	LMD-15	LMD-22	LMD-30	LMD-37	LMD-45
Capacity	500kg/hr	1000-1500kg/hr	2000kg/hr	3000kg/hr	4000kg/hr	5000kg/hr
Motor Power	7.5KW	15KW	22KW	30KW	37KW	45KW
Rotor Diameter	630mm	630mm	720mm	720mm	850mm	850mm
Roller Length	3.5m	4.5m	4.5m	4.5m	4.5m	4.5m
Label Suction Fan Motor	4KW	4KW*2	4KW*2	4KW*2	4KW*2	4KW*2
Label Separation Rate	98%	98%	98%	98%	98%	98%

Product Photos

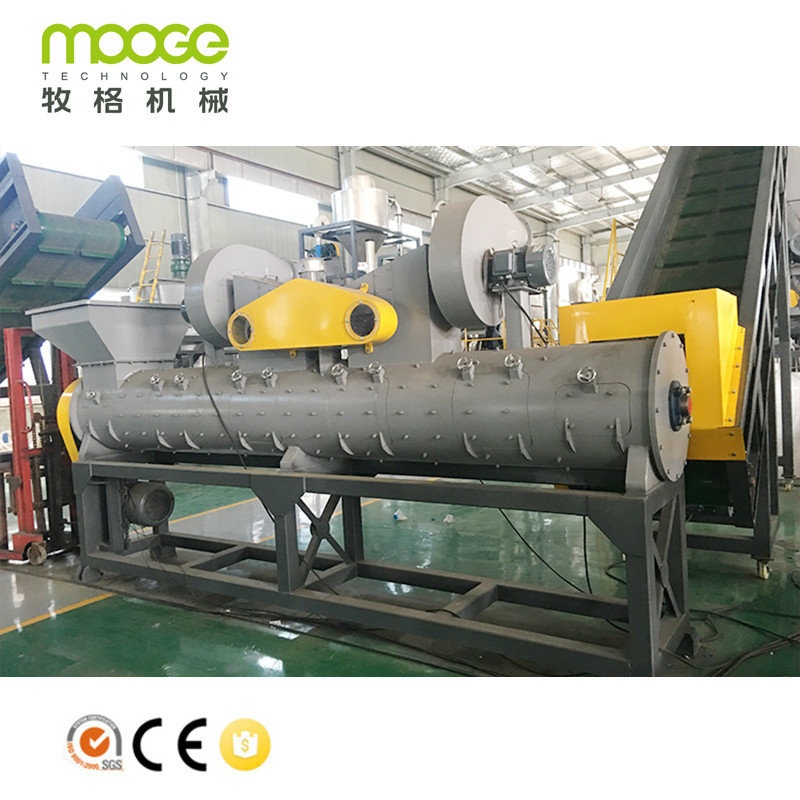

Label Remover Machine

Used to remove the labels from the bottle and separate label out from bottles.

Label remove effective: > 98%

Dry working without water

Using the seal ball bearing with NSK brand.
Bearing house is outside of machine body no dirty goes inside for long time use.

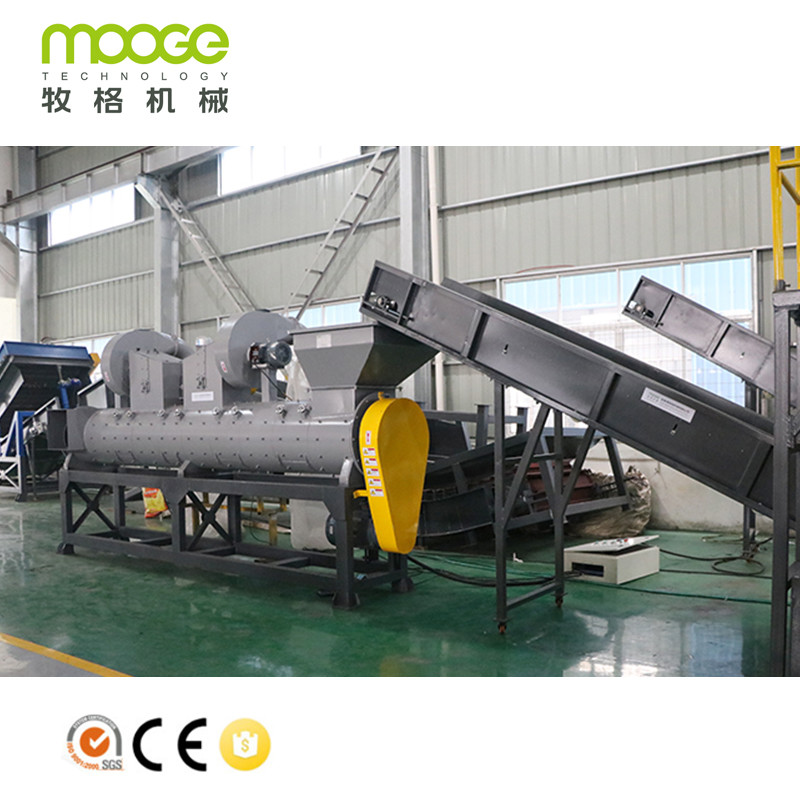

Label Remover Machine

Machine made by solid frame, on the top there is glass window easy to clean the machine and checking inside.

The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Rotary Blade

Blade made by alloyed steel for long time use.

Blade is fixed by screw on the rotor easy to adjustable and changeable.

Rotor blades: 96 PCS for LMD-15

Fixed Blade

Blade material: D2

Channel Iron: Stainless Steel

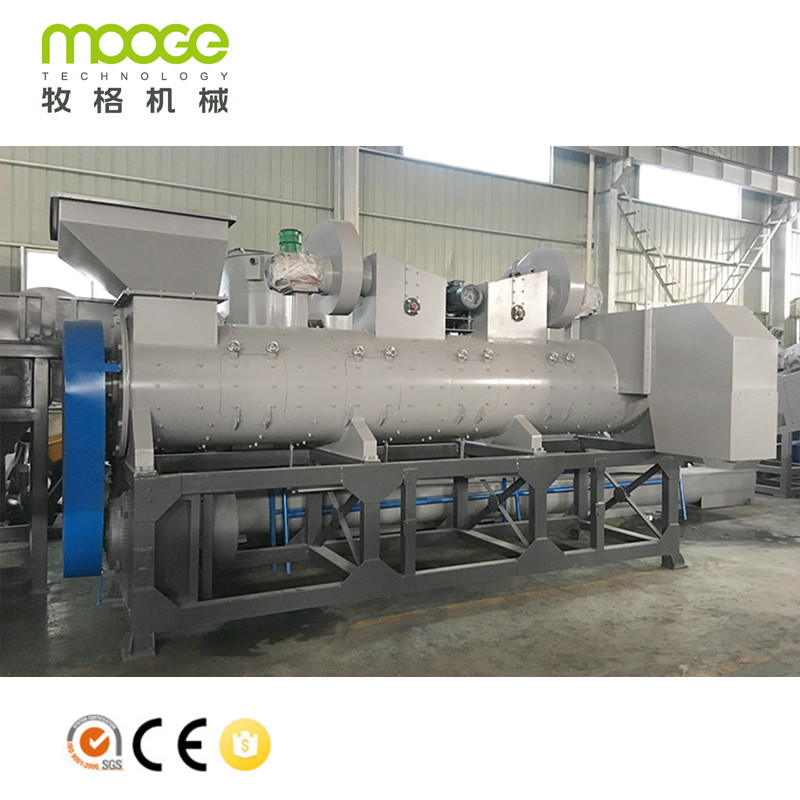

Label Remover Machine Rotor

The rotor feeder part with screw so no bottles pop out.

After Remove---Round Bottle

After Remove---Baled Bottle

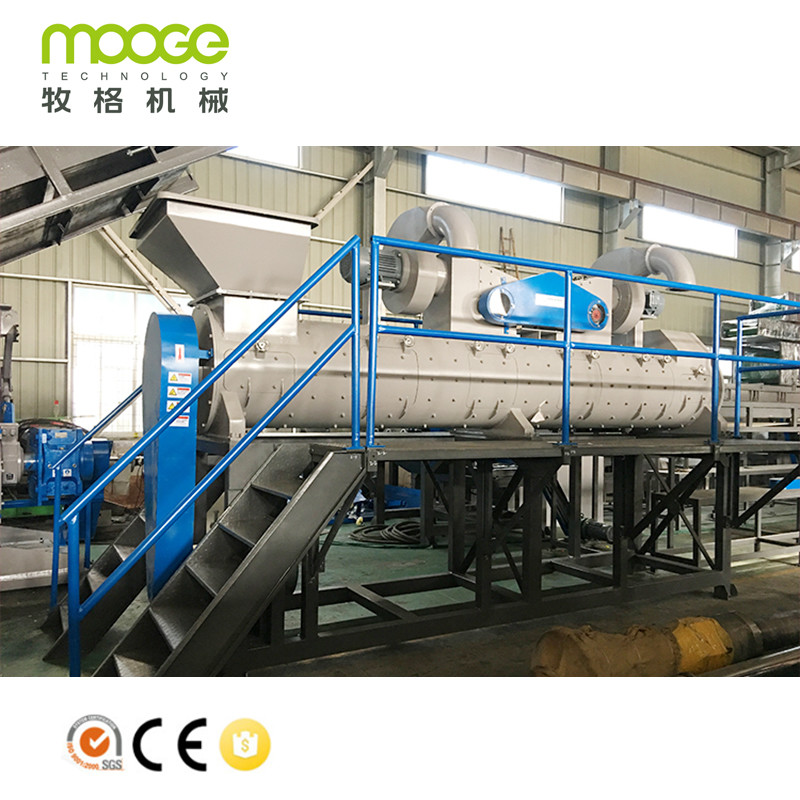

Label Remover Machine Producing-1

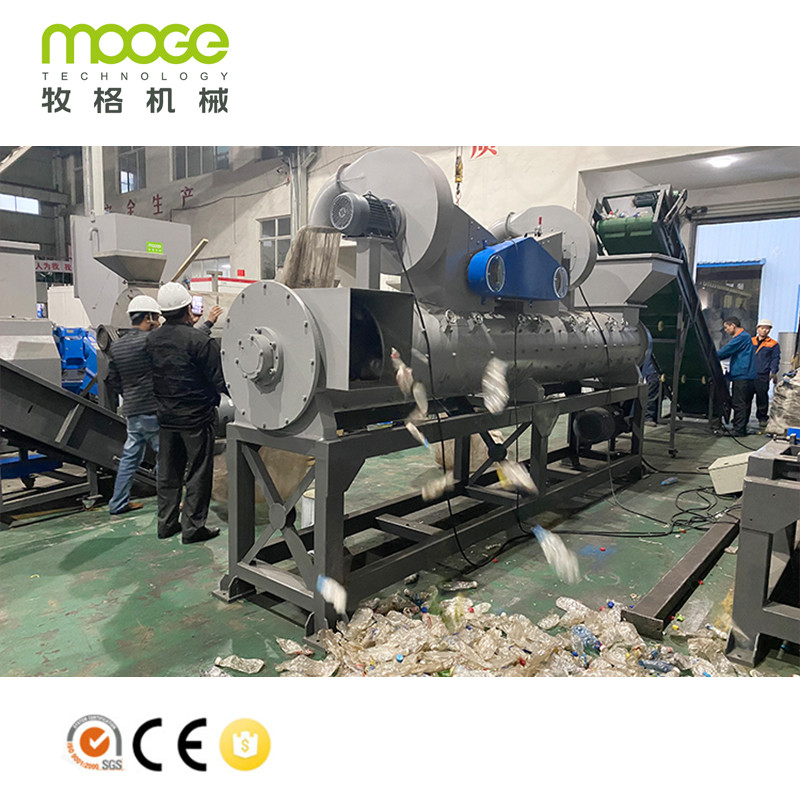

Label Remover Machine Producing-2

Label Remover Machine Producing-3

Customer Show

Label Remover Machine in Malaysia

Label Remover in South Africa

Label Remover Machine in UK

Auxiliary Machine

Packing & Delivery

Our Exhibition

After Sales Service

Before Sales Service

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine

On Sales Service

1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

After Sales Service

1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
