1500RPM Hot Air Plastic Dewatering Machine 5000kg/H PET Plastic Crusher

Contact Now

1500RPM Hot Air Plastic Dewatering Machine 5000kg/H PET Plastic Crusher

Price :	$89,000.00/sets 1-4 sets	Packaging Details :	wooden case or film
Supply Ability :	20 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE TECH
Certification:	CE ISO

Detail Information
Application:	Plastic Recycling Washing Line	Condition:	New
Automatic Grade:	Automatic	Plastic Type:	PET, PP PE PET HDPE LDPE
Production Capacity (kg/h):	300 - 5000	Machine Type:	PET Bottle Washing Line
Equipment List:	Dewatering Machine, Hot Air Dryer, Frication Washer	Max.Production Capacity (kg/h):	5000
Voltage:	380V 50HZ	Dimension(LWH):	3500x1200x1600mm
Power (kW):	350	Weight (T):	20
Warranty:	12 Months	Key Selling Points:	Automatic
Video Outgoing-inspection:	Provided	Applicable Industries:	Manufacturing Plant
Showroom Location:	Egypt	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	Customer Choice	Mesh Clean:	Auto By Water
Mesh Dia.:	3mm	Final Product:	Clean Flakes
Shaft Length:	2m	Rotor Speed:	1500RPM
Electric Control:	Optional	Mesh Material:	SS
After Warranty Service:	Video Technical Support, Online Support, Spare Parts	Local Service Location:	Egypt
Port:	Shanghai
Highlight:	hot air Plastic Dewatering Machine , 1500RPM Plastic Dewatering Machine , 5000kg/h pet plastic crusher

Product Description

MOOGE PET bottle dewatering and hot air drying system

Product Overview

Recycled waste cola bottle PET recycling machine

This series Recycled waste cola bottle PET recycling machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.

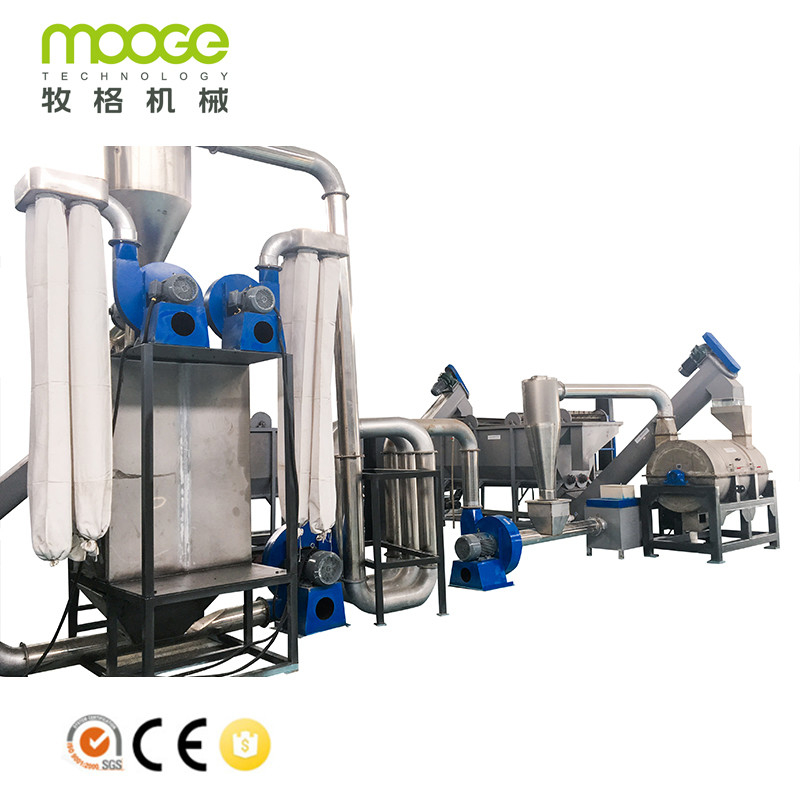

PET bottle recycling washing line

PET washing line type.We can design the layout according to your requirements .

The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other
impurities, finally you will get ideal PET flakes.

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	8085 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

FEATURES AT A GLANCE

Label Remover Machine

Function:remove the labels from the bottle and separate label out from bottles Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable The barrel designed with doors opening on it very easy to opening and maintenance The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Crusher Machine

Function: crushing the bottles to PET flakes,with water inlet do wet crushing Chamber opened by screw motor

Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation. Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG

Final “Zig-zag” label separator

The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower with air flow adjustable,With valve to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

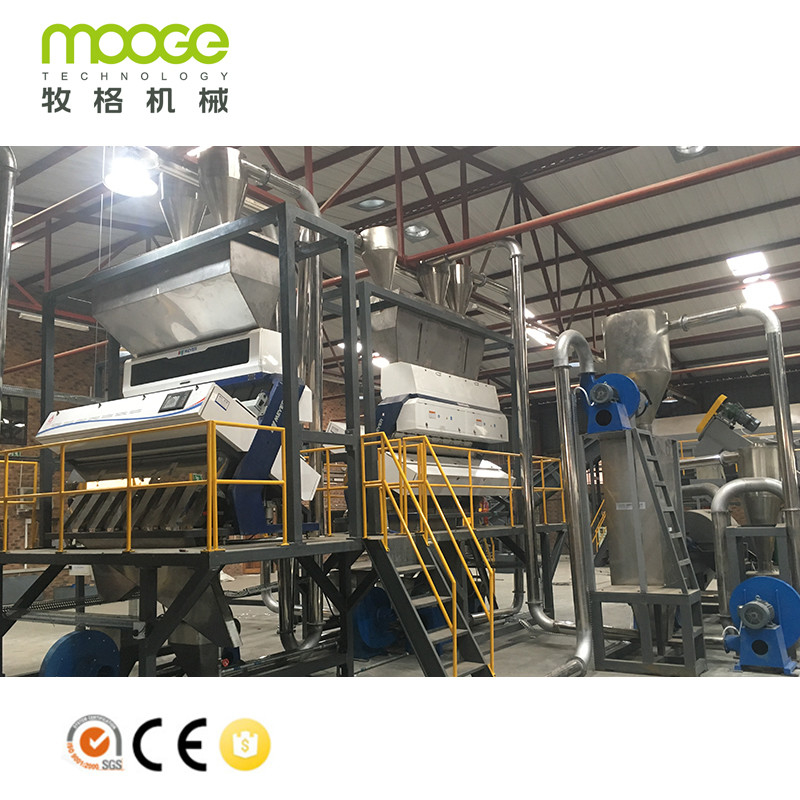

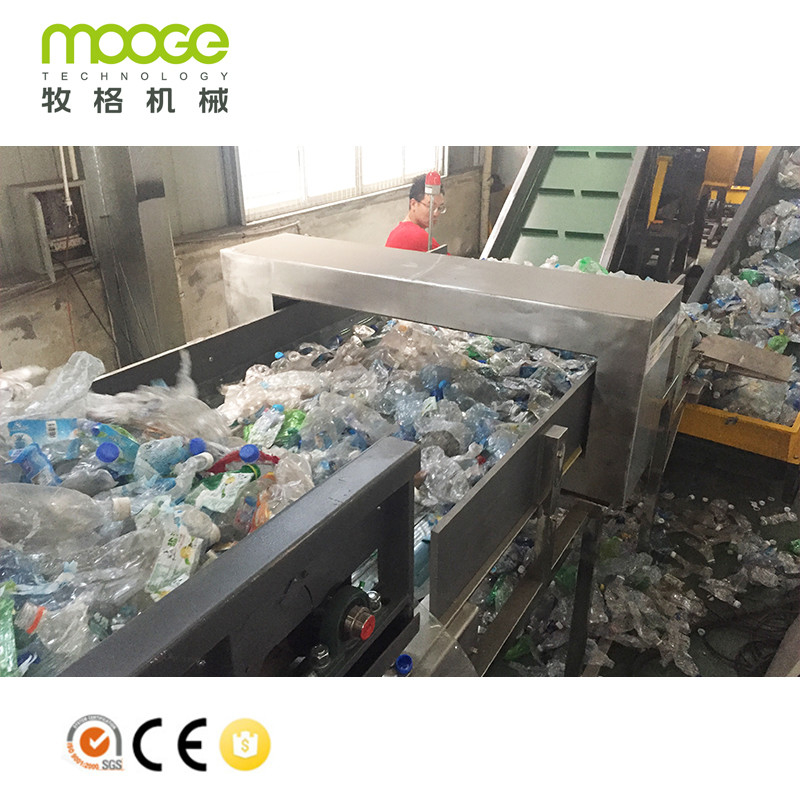

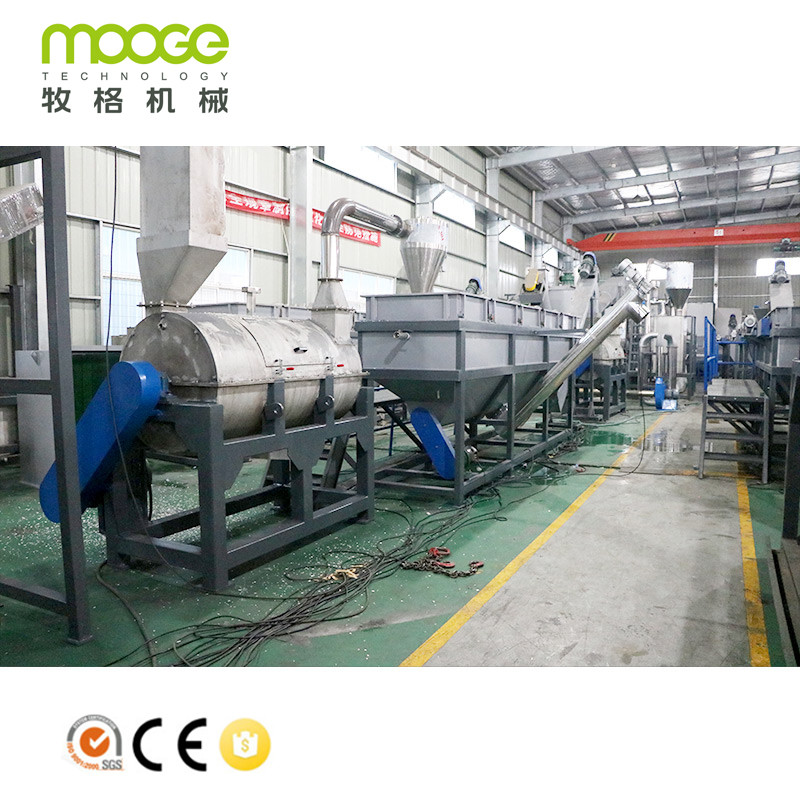

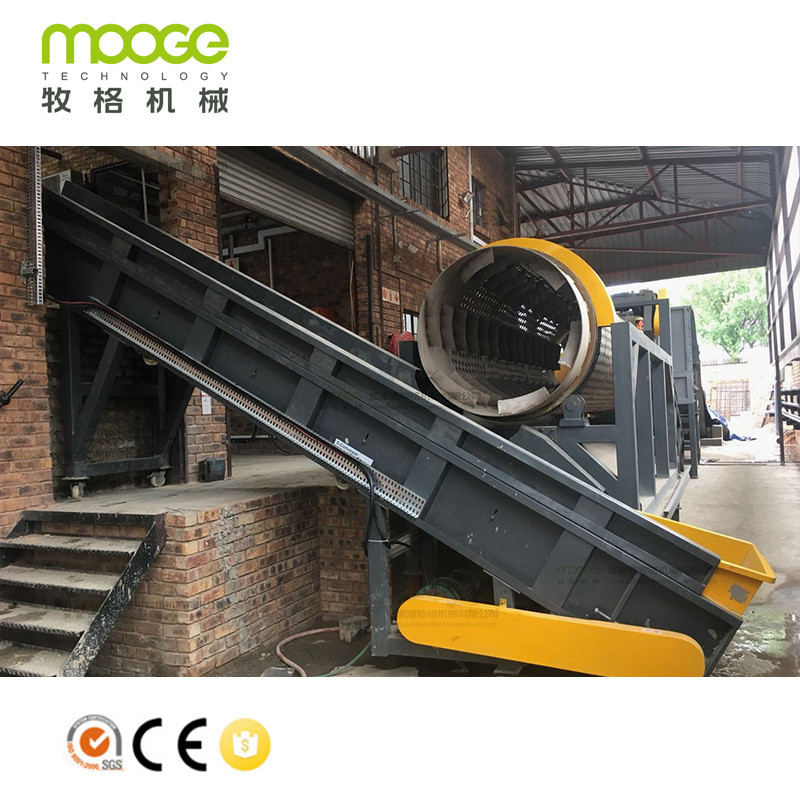

Customer Onsite

MT-500 PET bottle recycling washing machine in Myanmar

MT-1000 PET bottle recycling washing machine in Yemen

MT-3000 PET bottle recycling washing machine in Algeria

Our Service

• Pre-sale: we given client the details technician offer, sign the sales contract etc
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer
