Crusher Shredder Machine MT Series PET Bottles Washing Recycling Line

Contact Now

Crusher Shredder Machine MT Series PET Bottles Washing Recycling Line

Minimum Order Quantity :	1	Price :	USD125000
Delivery Time :	45-65days	Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1 SET 55Days

Place of Origin:	CHINA	Brand Name:	MOOGE
Certification:	CE	Model Number:	MT

Detail Information
Raw Material:	PET Waste Plastic Bottle	Final Product:	Clean PET Flakes
Function:	Make Recycling Cleaning	Final Use Of PET Flake:	Bottle Fabric Pellets
Material Processed:	Separating-crushing-washing-drying
Highlight:	PET Bottles Washing Recycling Line , PET Bottles Crusher Shredder Machine

Product Description

Product Overview

The PET recycling machine line is mainly used to recycling the waste PET bottles, water bottles,cola bottles, PET sheet and PET packing containers.

The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.

Product Parameters

We have 500-5000 kg/h MT-Series Plastic Double Shaft Shredder PET Washing Line Metal Crusher Machine .

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	8085 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

Product Description

Label Remover Machine

Function:remove the labels from the bottle and separate label out from bottles

Blade made by alloyed steel for long time use

Blade is fixed by screw on the rotor easy to adjustable and changeable

The barrel designed with doors opening on it very easy to opening and maintenance

The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

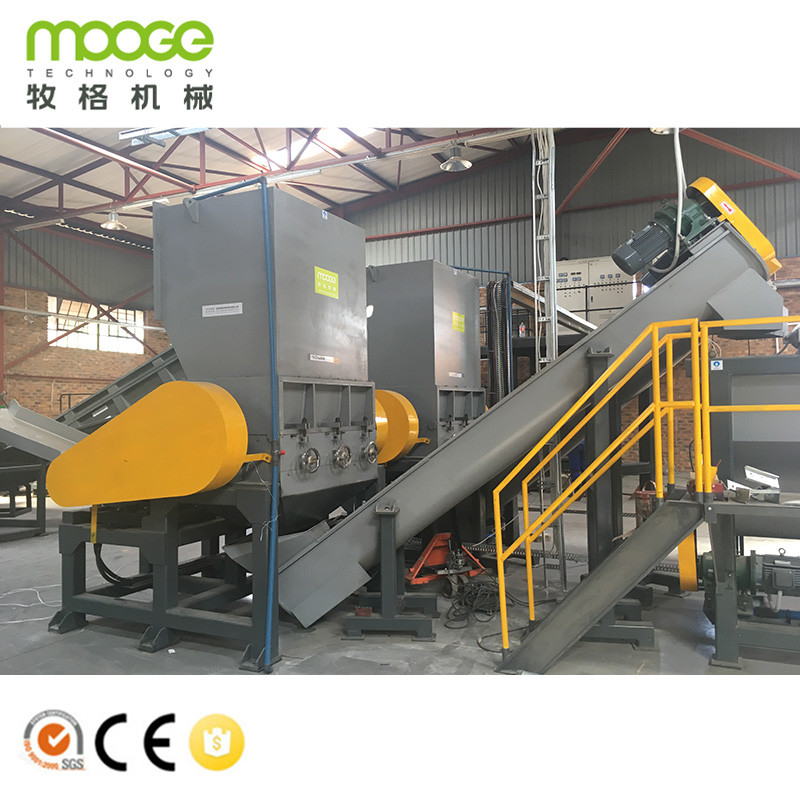

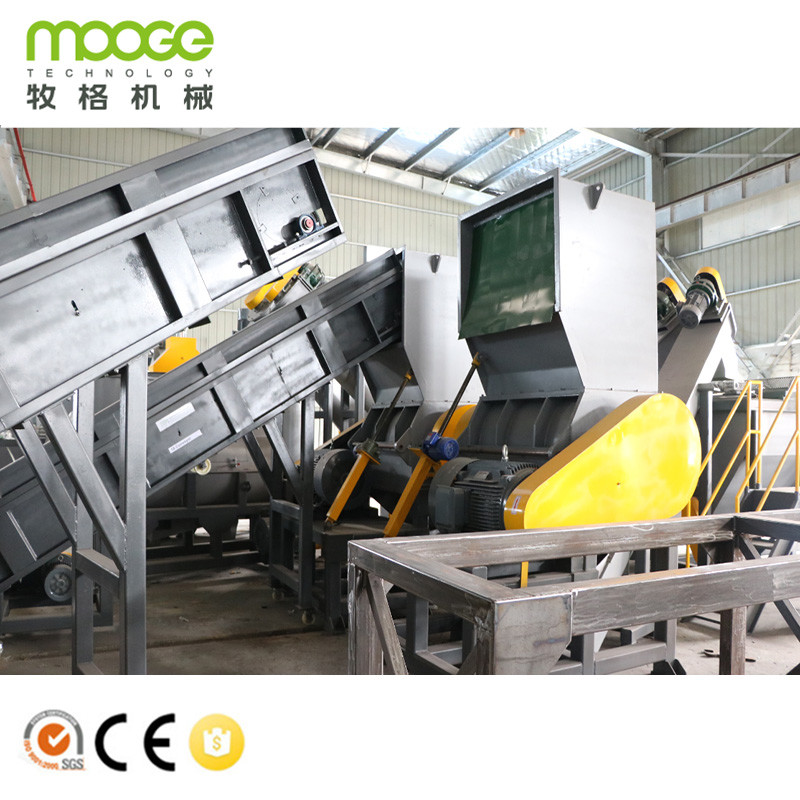

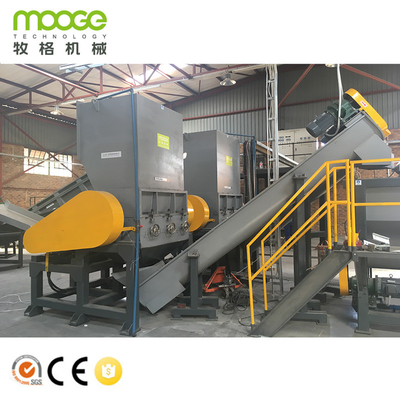

Crusher Machine

Function: crushing the bottles to PET flakes,with water inlet do wet crushing Chamber opened by screw motor.

Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation.

Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

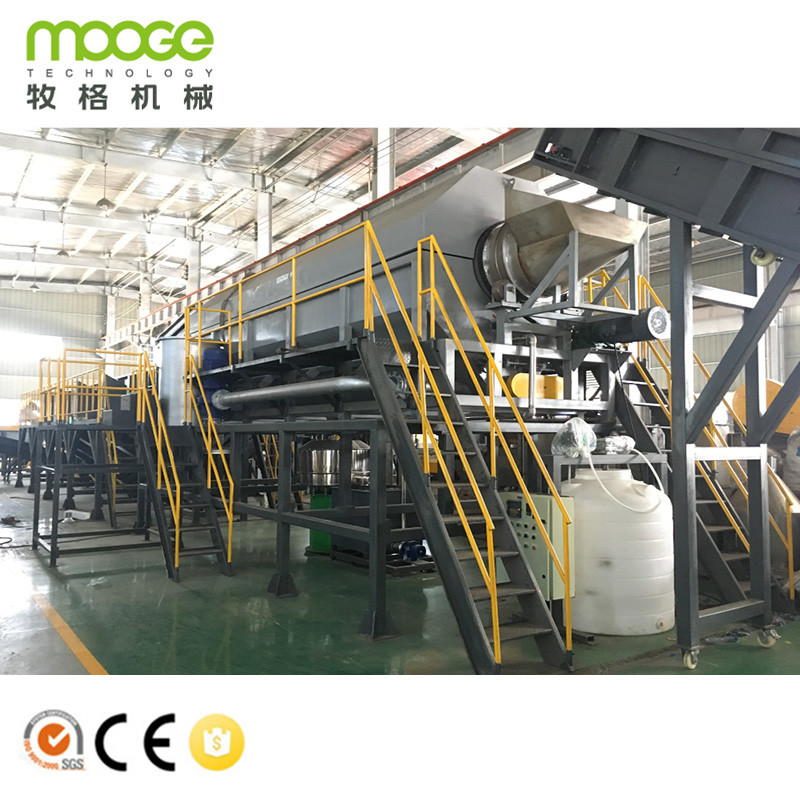

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes

The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing

Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG

Horizontal Dewatering Machine

With high raotary speed reach up to 1500rpm with better effect for removing the water
With the famous SKF roller bearing fixed outside for long lifespan
Inside with mesh layer made by SUS304, which is also cleaned by the water spray system

Final “Zig-zag” label separator

The Fine dust separator machine will remove the final labels from the flakes to guarantee the PVC content.

Blower with air flow adjustable,With valve to control the air flux of blower.

Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

Our Customers

Customers from all over the world come to Jiangsu Muge Machinery to have friendly conversations with employees. We hope to establish a long-term trade relationship with our customers.

Why Choose Us

In order to better serve customers, Mooge Machinery has established a complete sales network and after-sales service system. It has set up multiple offices and technical service centers across the country to provide customers with timely and thoughtful after-sales services, and has established long-term and stable cooperative relations with many countries and regions.
