Plastic PET HDPE Bottle Crushing Cleaning Washing Shredder Machine Waste Recycling Line

Contact Now

Plastic PET HDPE Bottle Crushing Cleaning Washing Shredder Machine Waste Recycling Line

Minimum Order Quantity :	1	Price :	USD 15000-28000
Delivery Time :	55-65 DAYS	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1 SET PER 55 DAYS

Place of Origin:	China	Brand Name:	MOOGE
Certification:	CE	Model Number:	MEB

Detail Information
Material:	PP PE Bottles	Final Product:	Clean Plastic Flakes
After-sales Service Provided:	Engineers
Highlight:	PET Plastic Bottle Recycling Line , HDPE Plastic Bottle Recycling Line , Plastic Waste Bottle Washing Line

Product Description

VD series Double Shaft Shredder

The VD double shaft shredder machine is designed for shredding a wide range of thin-walled plastics, including plastic buckets, crates, basins, drums, PC water bottles, and chairs. It is also suitable for shredding thin-walled metal barrels, discarded tires, tin sheets, and more.

With extensive experience in manufacturing plastic shredders, our company offers machines with a capacity range of 300-2000 kg/h and can customize the design based on your specific requirements.

Key Advantages of the VD Shredder Machine:

1. Advanced Control System: Equipped with a PLC control system for automated overload protection and an auto-reverse switch, ensuring reliable operation.

2. Superior Shaft Design: Features a robust shaft structure with low noise operation and easy blade replacement.

3. Low Speed Operation: The low rotation speed minimizes noise and reduces dust generation, creating a cleaner and quieter working environment.

4. Customizable Options: Can be tailored to meet customer-specific requirements, including throughput capacity, processed materials, and other parameters.

Choose the VD double shaft shredder for efficient, reliable, and versatile shredding solutions tailored to your needs.

Product Paramenters

Model	VD-3040	VD-3060	VD-3080	VD-30100	VD-30120	VD-4260
Motor Power (kW)	7.5	5.5+5.5	15+15	22+22	30+30	15+15
Rotor Speed (RPM)	15	15	15	15	15	15
Rotor Diameter (mm)	Φ300	Φ300	Φ300	Φ300	Φ300	Φ420
Fixed Blades QTY	20	30	40	50	60	20
Blade Thickness (mm)	20	20	20	20	20	30

Model	VD-4280	VD-42100	VD-42120	VD-52100
Motor Power (kW)	22+22	30+30	45+45	55+55
Rotor Speed (RPM)	15	15	15	15
Rotor Diameter (mm)	Φ420	Φ420	Φ420	Φ520
Fixed Blades QTY	20	25	30	16
Blade Thickness (mm)	40	40	40	60

Model	VD-52120	VD-52150	VD-60150	VD-60200
Motor Power (kW)	75+75	90+90	110+110	132+132
Rotor Speed (RPM)	15	15	15	11
Rotor Diameter (mm)	Φ520	Φ520	Φ600	Φ600
Fixed Blades QTY	20	25	25	32
Blade Thickness (mm)	60	60	60	60

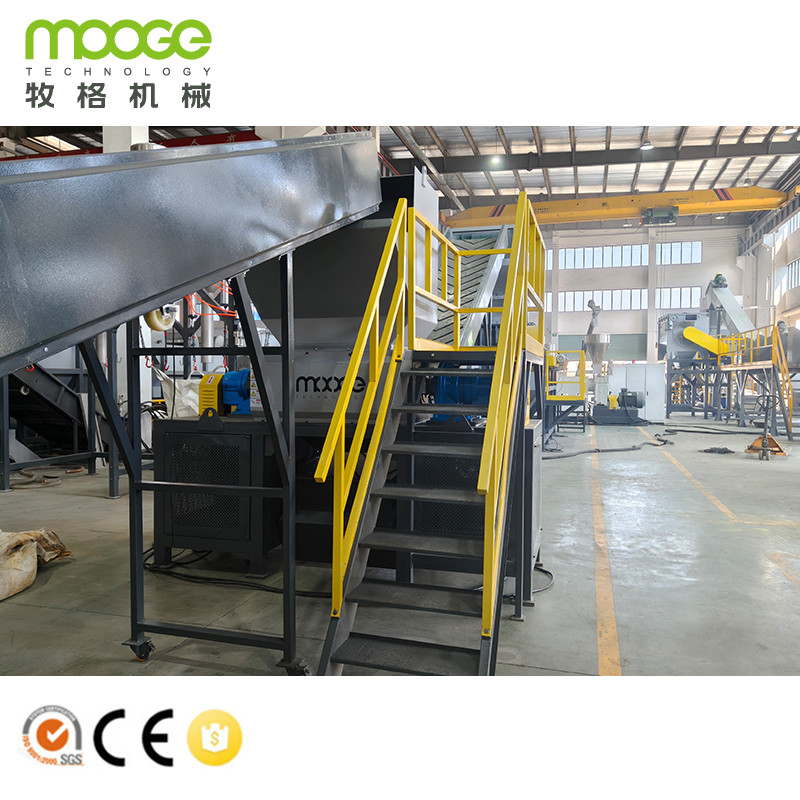

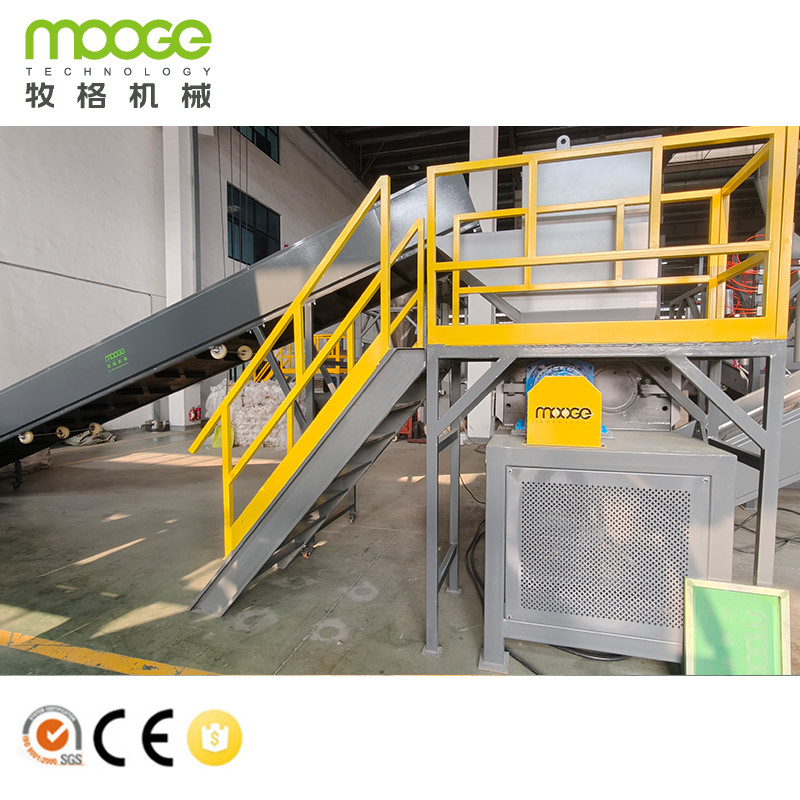

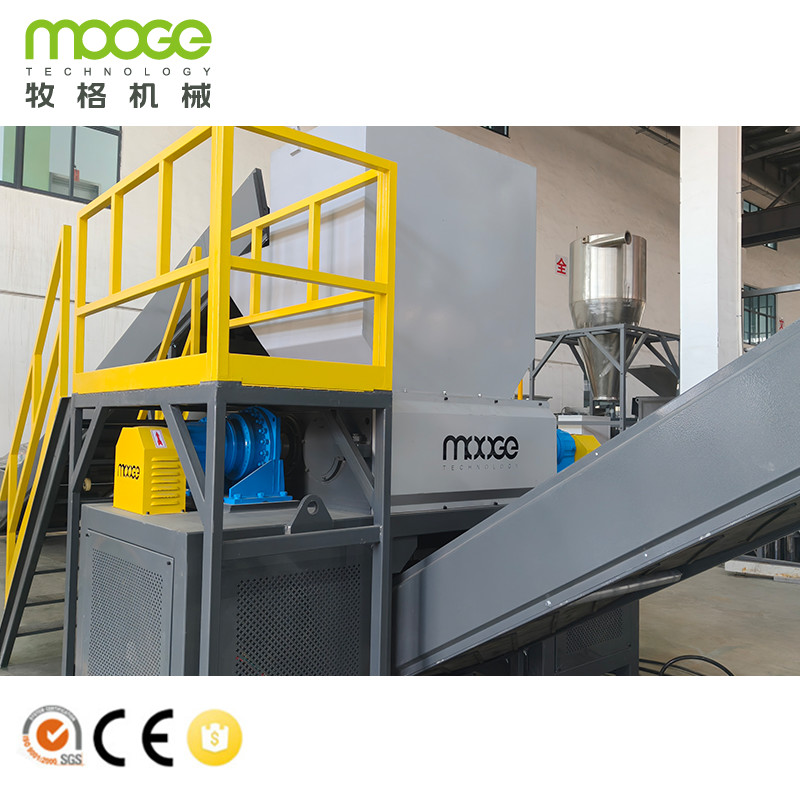

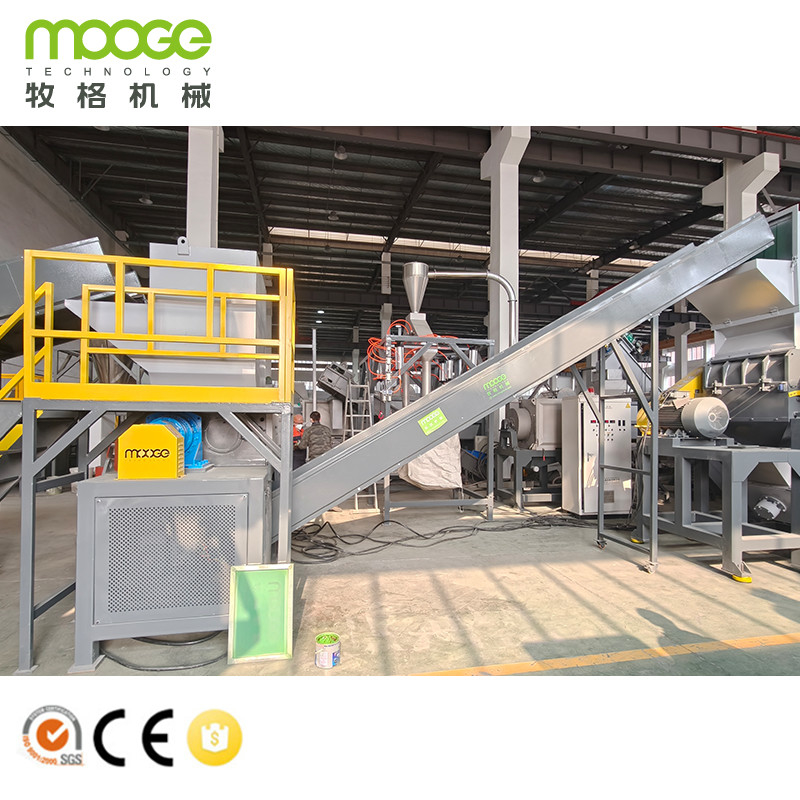

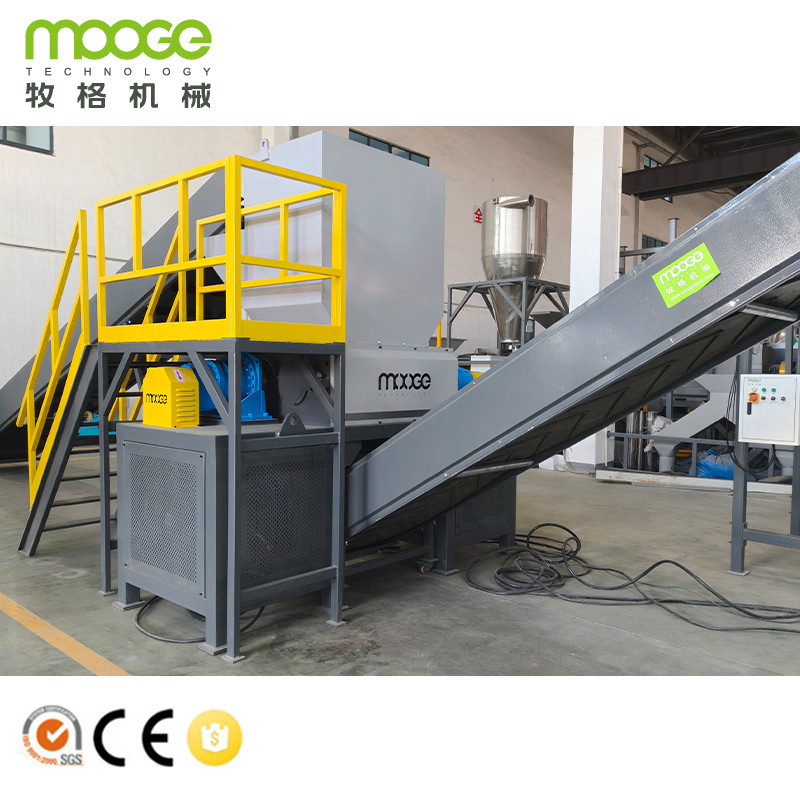

Product Photos

Blade Spacer

Made from high-quality carbon steel for enhanced durability and performance.

	Rotary Blade Manufactured using D-2 steel, meeting USA standards with an HRC hardness of 58-59, providing superior performance compared to SKD-II. Alternatively, we can offer DC-53 steel for even higher wear resistance and longevity.
	Shredding chamber Constructed from premium carbon steel, ensuring stable operation without vibration for improved efficiency and reliability.
	Motor Utilizes motors from well-known domestic brands. Specific motor brands can also be designated upon request.
	Gear Reducer Equipped with reducers from renowned domestic brands such as Guomao and TONGLI. Specific brands can also be designated upon request.
	Bearing We use NSK bearings, a renowned Japanese brand, imported directly from Japan for optimal precision and durability. Additionally, we can offer SKF bearings as an alternative upon customer request.
