Hot Cut PE PP Plastic Pelletizing Machine 300-1000kg/H PET Pelletizer
Contact Person : Linna Zhao
Phone Number : +8615150220986
Whatsapp : +8615150220986
| Minimum Order Quantity : | 1 SET | Price : | 75000 USD 1 SET |
|---|---|---|---|
| Packaging Details : | Wrapped in Film | Delivery Time : | 60 working days |
| Payment Terms : | T/T, L/C | Supply Ability : | 1 SET per 2 month |
| Place of Origin: | China | Brand Name: | MOOGE |
|---|---|---|---|
| Certification: | CE ISO | Model Number: | YSL-Series, YDL-Series |
|
Detail Information |
|||
| Control: | PLC | Frequency Invertor Brand: | ABB |
|---|---|---|---|
| Delivery Port: | Shanghai | Cooling System: | Strand Cooling |
| Plastic Type: | Rigid PP/PE | Electrical Part: | CUSTOMIZED |
| Product Type: | Granulating Machine | Gear Box: | Hard Tooth Surface Gear Box |
| Highlight: | Recycling Plastic Pellet Granulator Machine,Plastic Pellet Granulator Machine,Pe Flakes Granulator Machine |
||
Product Description
This High Efficiency Pe Pp Granulator Pelletizer Plastic Rigid Flakes Pelletizing Line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic rigid material, such as HDPE, PP, PC, PS, ABS, etc.
The material go through transmission system, extrusion system, strand cooling system, pellet cutting system and collect system will turn to be clean perfect pellets for reuse.
You can choose double stage or single stage extruder according to the cleanliness of your material.
This plastic pelletizing machine can be displayed "L" or "U" shape according to clients' workshop.
YSL-SJ Series Double Stage Strand-cooling Cutting Pelletizing Line
| Model | Screw Diameter | Screw L/D | Main Motor Power | Second Screw L/D | Capacity |
| YSL-SJ100 | 100mm | 25-33:1 | 45KW+22KW | 10-12:1 | 150-200kg/h |
| YSL-SJ120 | 120mm | 25-33:1 | 75KW+30KW | 10-12:1 | 200-300kg/h |
| YSL-SJ150 | 150mm | 25-33:1 | 110KW+37KW | 10-12:1 | 400-500kg/h |
| YSL-SJ160 | 160mm | 25-33:1 | 132KW+37KW | 10-12:1 | 500-600kg/h |
| YSL-SJ180 | 180mm | 25-33:1 | 160KW+45KW | 10-12:1 | 600-800kg/h |
| YSL-SJ200 | 200mm | 25-33:1 | 200KW+55KW | 10-12:1 | 800-1000kg/h |
YDL-SJ Series Single Stage Strand-cooling Cutting Pelletizing Line
| Model | Screw Diameter | Screw L/D | Main Motor Power | Capacity |
| YDL-SJ100 | 100mm | 25-33:1 | 45KW | 150-200kg/h |
| YDL-SJ120 | 120mm | 25-33:1 | 75KW | 200-300kg/h |
| YDL-SJ150 | 150mm | 25-33:1 | 110KW | 400-500kg/h |
| YDL-SJ160 | 160mm | 25-33:1 | 132KW | 500-600kg/h |
| YDL-SJ180 | 180mm | 25-33:1 | 160KW | 600-800kg/h |
| YDL-SJ200 | 200mm | 25-33:1 | 200KW | 800-1000kg/h |
Features and Adwantages
| Raw Material | Washed or Clean Rigid PE PP Flakes Size Within 16mm, Moisture Within 2% |
| Finished Product | Clean Small Uniform Pellets Size Around 3mm |
| Main Machine List | Screw Loader, Magnetic Frame, Dosing Feeder, Screw Extruder (mother stage), Hydraulic Screen Changer/Double Pillar, Vacuum Degassing Die Head, Screw Extruder (baby stage), Hydraulic Screen Changer/Double Pillar, Die Mold, Strand Cooling Water Tank, Air Dryer Machine, Pelletizier Machine, Vibration Screen, Air Feeding System &Silo Storage, Electric Control Cabinet |
| Main Components | NSK/SKF bearing, TTO oil sealing, Guomao reducer, etc. |
| Electric Components | ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc. |
| Warranty Period | One Year from the Machine Operation within 18 Months from the B/L Date |
| Turnkey After Service | Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service; |
| Volatage | Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
Feeding Unit

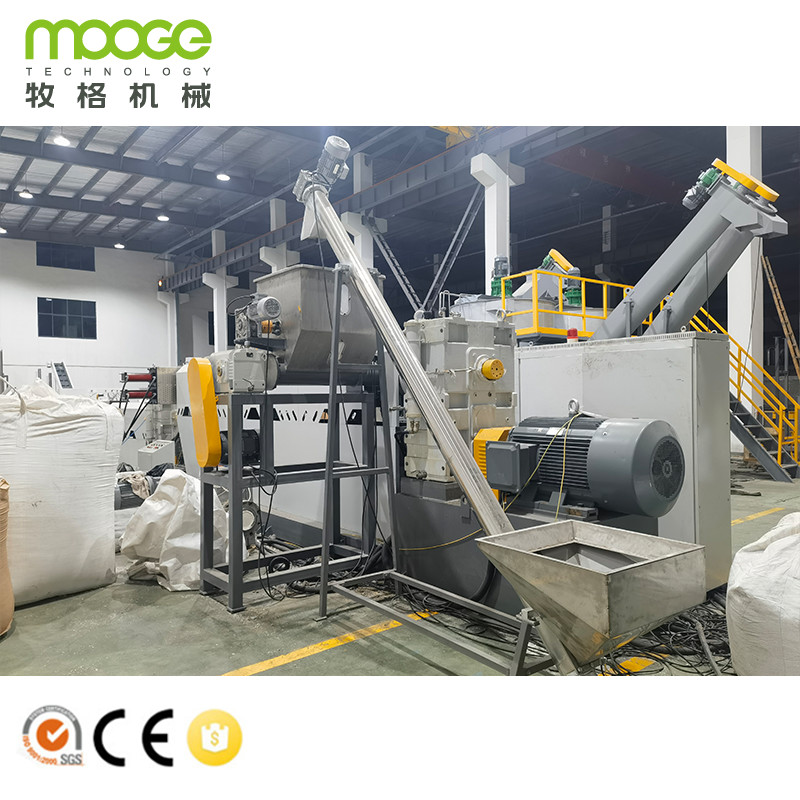

Screw loader to loading the rigid pe pp flakes into the dosing feeder.
Dosing feeder then feed quantitive flakes into the main extruder, the feeding speed is adjust by inverter, inverter brand is ABB.
Both the screw loader and dosing feeder is made by stainless steel.

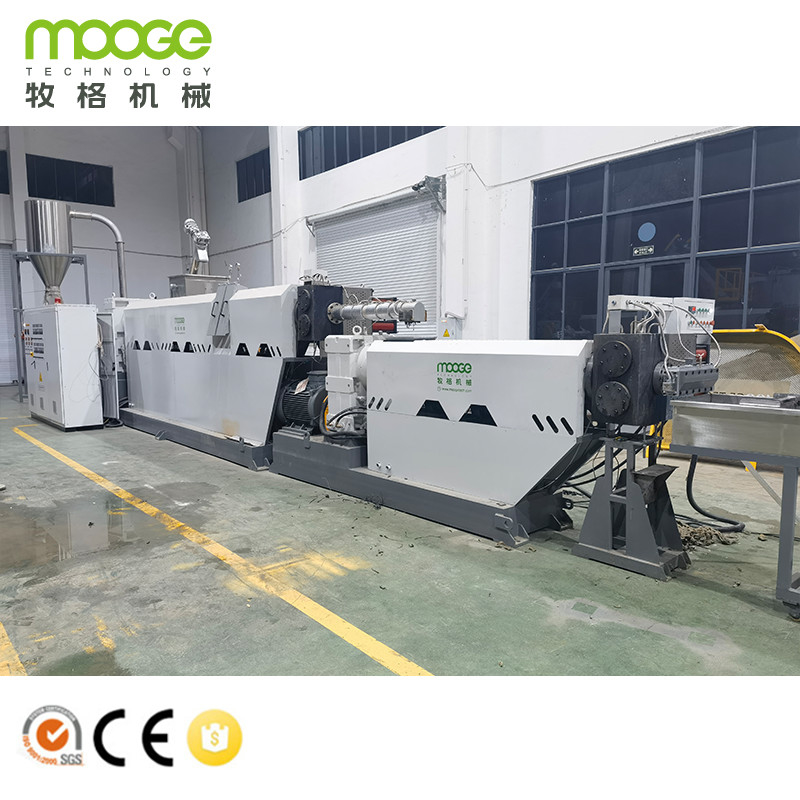

Main Screw Extruder
The main screw extruder will melt the plastic into liquid state with high temperature.
Extruder made by sturdy frame, heavy. No vibrating when the machine is running
The whole frame where installed the gearbox, motor and screw has done the milling working.
Hydraulic Screen Changer
Material is going through this machine to filter out the dirty.
Board made by 38CrMnAl with forging and heating treatment that won’t deform after heating up.
With hydraulic station one set, with the magnetic drive valve to control the working.
Water Cooling Tank
Cooling down the temperature of plastic straps
Water tank is made by stainless steel, with valves control the water level

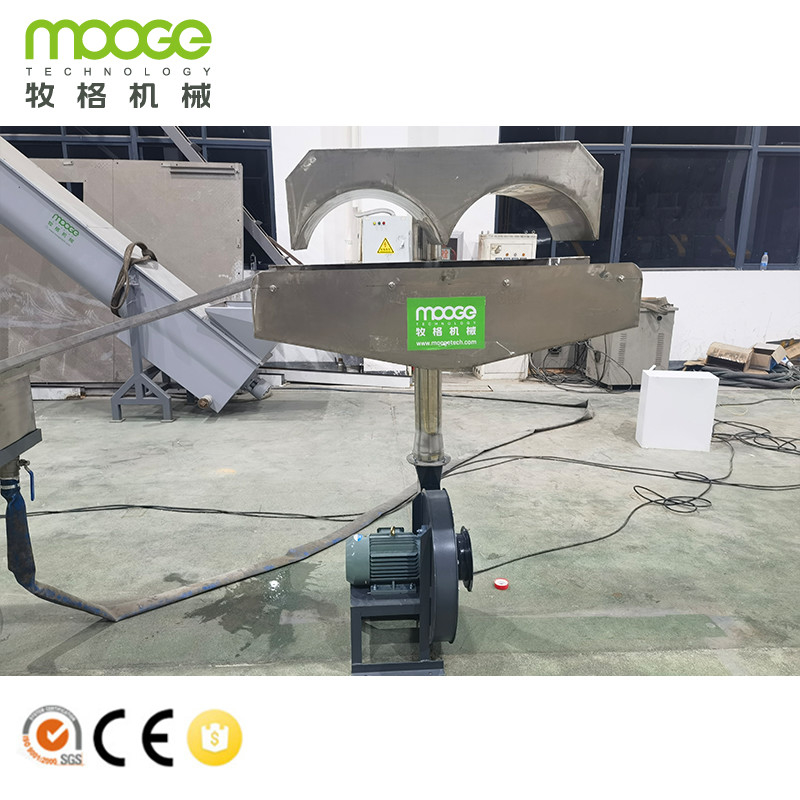

Better use the water chiller to cooling the water for recycling use

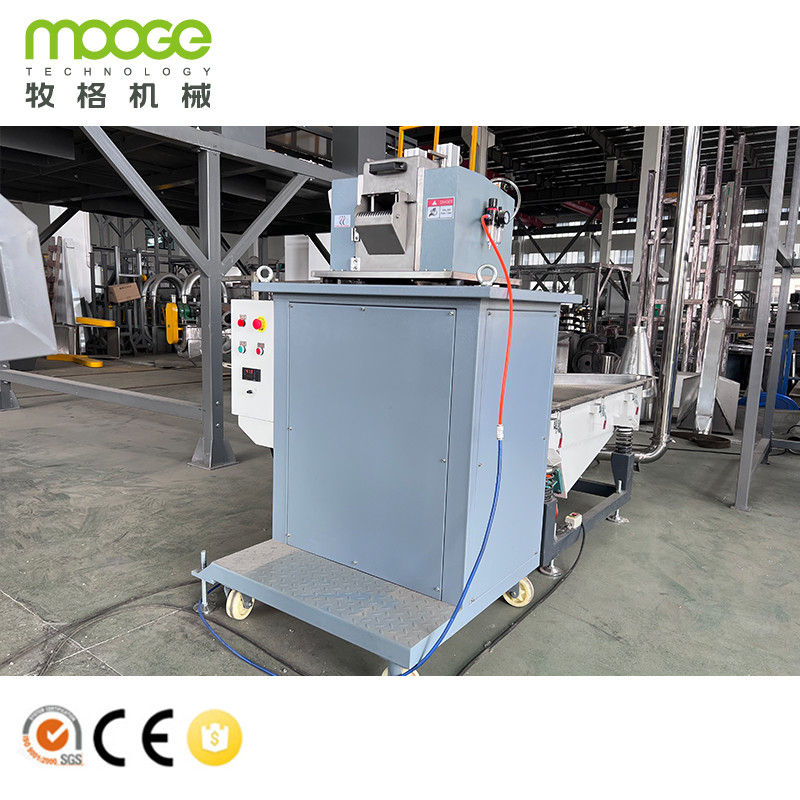

Plastic Pelletizer Machine
With the fixed blade, rubber roller, rotary blades complete one set, cutting speed is adjust
Machine is made up of high quality stainless steel, which is sharp and hard-wearing.
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity(kg/h) do you want?
• Are your plastic material clean or after washed?
• Other special requirements about the machine you want.
