High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line

Contact Now

High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line

Minimum Order Quantity :	1 SET	Price :	USD 50000-120000 SET
Packaging Details :	standard export package	Delivery Time :	60 working days
Supply Ability :	1 SET PER 75-80 days

Place of Origin:	China	Brand Name:	MOOGE
Certification:	CE ISO	Model Number:	RSS-SJ120

Detail Information
Machine Type:	Pp Woven Bags Strand Cooling Granulator Machine	Voltage:	380V 50Hz 3Phase Or Customized
Contactor:	Schneider	Gearbox:	Guomao
Temperature Meter:	Omoron	Screw Material:	38CrMoAlA
Inverter Brand:	ABB Or Delta	Screw Rotary Speed:	1-115rpm
Screw L/D:	28-33:1	Cutting Method:	Water Ring Cutting
Filter Method:	Hydraulic Exchange Plate	Final Product:	Pellet With 3mm Size
Highlight:	PP PE film recycling granulator machine , plastic pellet making line machine , waste plastic pelletizing machine with warranty

Product Description

MOOGE has over 20 years of expertise in plastic recycling machinery. Our philosophy is to make the world better with recycling. MOOGE is committed to continue developing better and more powerful technologies. More than 20 years of experience in plastic recycling processing helps us to actively contribute to the success of our customers by providing sustainable solutions that meet the needs of the industry.

Plastic pelletizing is a system and technology in which plastic scraps are recycled back into a reusable raw material. The melt-filtrated strands are cooled briefly and cut into pellets. Plastic manufacturers or processors can then reuse it for a variety of applications. Plastic pelletizing machine for recycling plays a crucial role to recycle and reuse plastic wastes. More and more manufacturers are looking for ways to reduce waste and recycling materials in their processes.

Plastic pelletizing machine list include:

1. CBD-1000 Conveyor Belt

2. Metal detector

3. Compactor Force Feeder

4. Screw Extruder (mother stage)

5. Hydraulic Screen Changer-Double Pillar
6. Vacuum Degassing Die Head

7. Screw Extruder (baby stage)
8. Hydraulic Screen Changer--Double Pillar
9. Vertical Die Face Cutting System

10. Water Cooling Tank
11. Dewatering Machine

12. Vibration Screen
13. Air Feeding System &Silo Storage

14. Electric Control Cabinet

Why Choose with us:

1. Wide range of materials processing: No matter the type of the material such as pe film, pp woven bags,jumbo bags etc. , all materials can be processed in the machine. 2. Energy saving: It reduces the overall energy consumption up to 20-25%. 3. Labor cost saving: Only 1 ~ 2 operators are needed to operate the whole plant. 4. Output capacity: In comparison to traditional recycling pelletizing machines, us machines provide higher output capacity(According to incomplete statistics, the output can be increased by about 10% compared with the traditional granulator.) 5. Granules: Looks good and more fuller

Waste Plastic Before Us Plastic Pelletizing Machine

Waste Plastic After Us Plastic Pelletizing Machine

Product Parameters

Single Stage Extruder Plastic Pelletizing Machine (Mother Stage)
Model	Extruder Stage	Screw Diameter:MM	Screw Power:KW	Capacity:KG/H
RDS-SJ 100	1	100	45	150-200
RDS-SJ 120	1	120	75	200-300
RDS-SJ 150	1	150	110	400-500
RDS-SJ 160	1	1600	132	500-600
RDS-SJ 180	1	180	160	600-800
RDS-SJ 200	1	200	200	800-1000

Double Stage Extruder Plastic Pelletizing Machine (Mother And Baby Stage)
Model	Extruder Stage	Screw Diameter:MM	Screw Power:KW	Capacity:KG/H
RSS-SJ 100	2	100	45KW+22KW	150-200
RSS-SJ 120	2	120	75KW+30KW	200-300
RSS-SJ 150	2	150	110KW+37KW	400-500
RSS-SJ 160	2	160	132KW+37KW	500-600
RSS-SJ 180	2	180	160KW+45KW	600-800
RSS-SJ 200	2	200	200KW+45KW	800-1000

Machine Video & Details

00:13

00:33

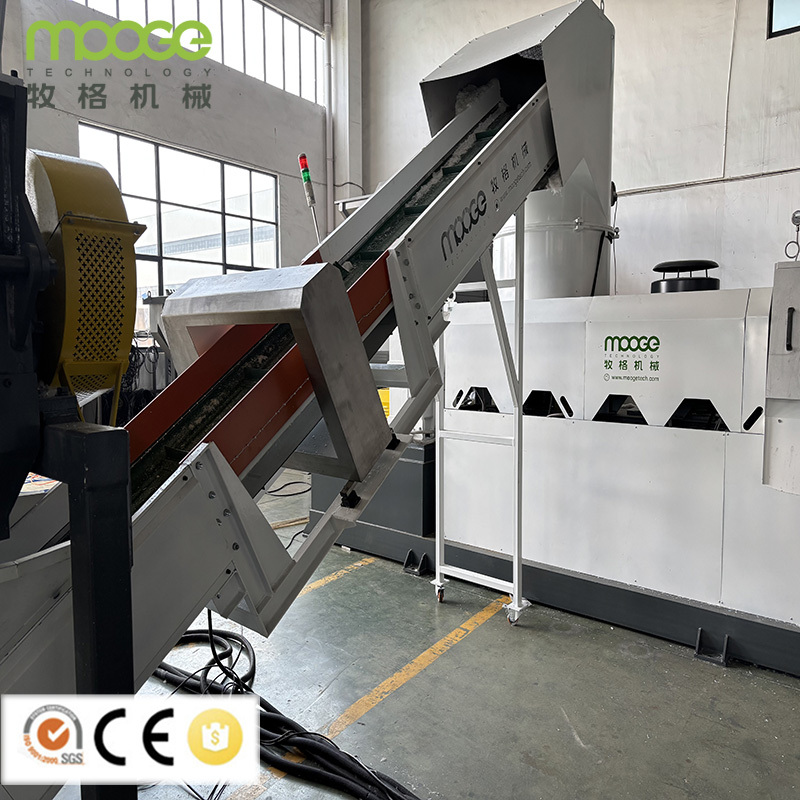

Conveyor Belt + Metal Detector Machine

Automatic and inverter control feeding plastic to extruder machine ,conveyor belt bottom have wheel ,easy moving . by metal detector machine, automatic checking metal and stop feeding , manual remover metal

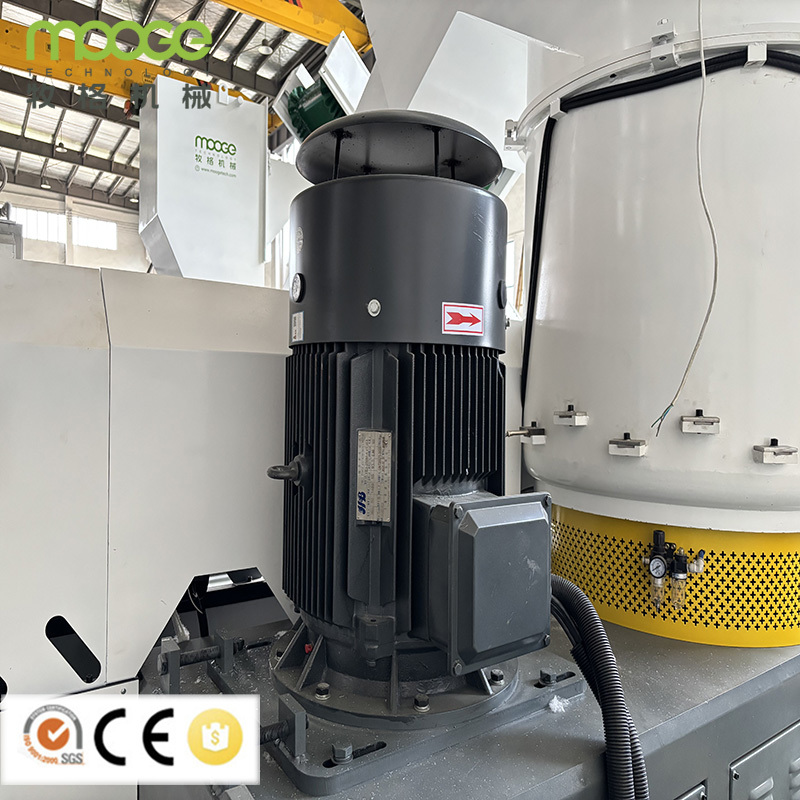

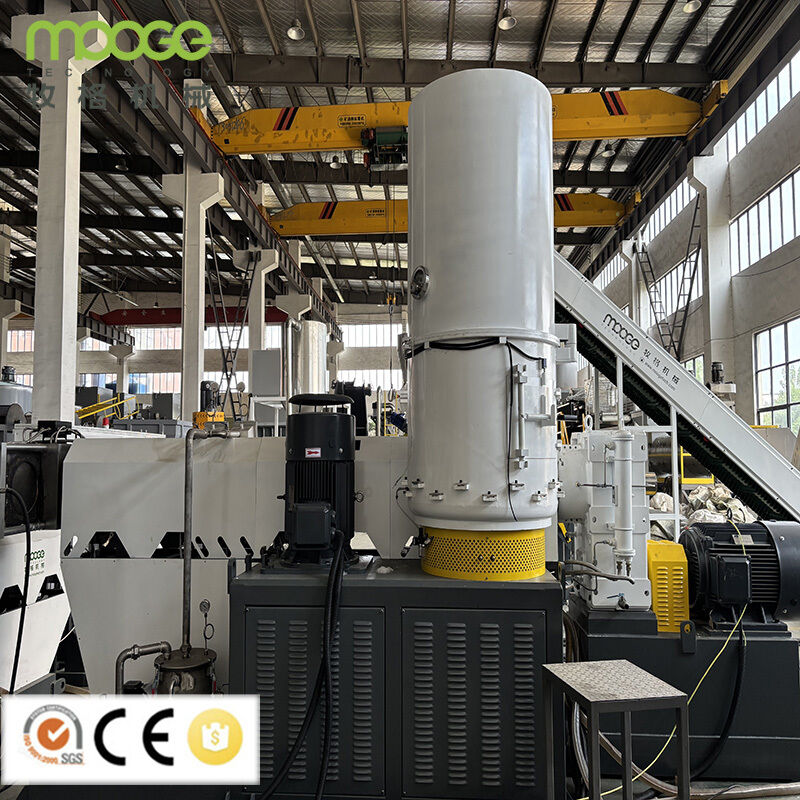

Compactor Force Feeder - Agglomerator

Powerful chassis compaction system, sharping blades, and excellent water cooling system ensure that the equipment can match different types of materials. Rotation speed:750r/min Rotation knife:12 PCS Fixed knife:15 PCS Thermocouple:1 Diameter:1500mm

First Stage Mother Extruder Barrel And Screw

Our screws are highly nitrided, wear-resistant, and have a long life. They also use high-performance ceramic heaters to quickly plasticize the plastic inside the barrel for extrusion.

Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV

With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm

Economic Model-Board Model

this is economic model filter for pelletizing line

it have double board,four board etc.

Advance Model-Laser Filter

this is advance model - later filter

more good filter and more good quality for granules

Double Pillar Hydraulic Filtration System-Standard Model

Equipped with high-speed hydraulic switching device, larger melt filtration area, fine filter screen, higher pressure load, no leakage during operationPressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees .we also supply economic board screen changer and laser model screen changer

Second Stage Baby Extruder Barrel And Screw

The same configuration as the first stage extruder, excellent performance for secondary filtration, to obtain a cleaner melt

Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV

With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm

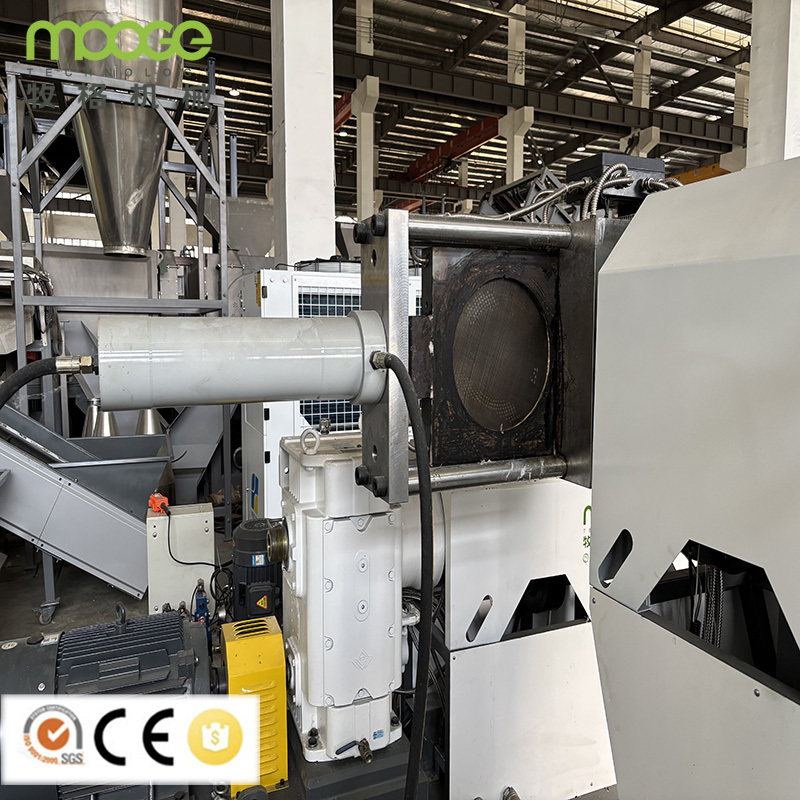

Second Hydraulic Filtration System

in second stage ,use more higher filter screen .such as a 120-mesh filter. After two filtrations, more impurities are filtered out.Pressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees

Vertical Pellet Cutting System
Vertical pelletizing, matching different recycled materials, using high-quality alloy cutter heads, fast cutting, allowing the material to enter the cooling and molding system

Cutting blade Qty: 4PCS Die mould Made by the 40Cr material with forging treatment, surface been nitriding treatment and buffing. Material out coming holes diameter: 2mm

Watering Cooling System

Linear cooling water tank, fast flushing cooling particles, 304 stainless steel material

equipped with 1.5kw cold water circulation pump

High Speed Dewatering Machine High Speed Dewatering Machine-304 Stainless Steel 1500 rpm high speed spindle, strong centrifugal force, low water content Inside rotor is special design as hexagon Machine bottom have one waste water collecting tank with filtering mesh to clean the water before drain

Double Layer Vibrator machine

Use double-layer high-efficiency vibrating screen to screen high-quality and full particles

Motor Power: 0.4KWx2
Made by stainless steel
First layer to screen out bigger size material
Good material goes out from middle
Dust get out from the bottom

Air Conveyor Pipe

Large diameter pipe, easy to blow particles to the storage hopper, stainless steel material, wear-resistant and long service life

Blower power: 4KW
Conveying pipe diameter: 133mm
conveying pipe Made by stainless steel SUS304

Packing Storage Silo
Silo volume: 2m3 Made by stainless steel SUS304

Machine Control Panel System

Switch: SCHNEIDER brand
Temp. Meter: OMRON brand of Japan
Contactor: SCHNEIDER/SIEMENS Brand
Main invertor: “ABB” Brand
Other electronics : DELIXI Brand
