Product Description
Product Overview
Plastic Recycling Washing Line
Customized Plastic Washing Solution for HDPE / PP / PE Bottle
<img alt="" data-cke-saved-src="/photo/recyclingplasticmachines/editor/20260521165529_72356.jpg <p class=" src="/photo/recyclingplasticmachines/editor/20260521165529_72356.jpg <p class=" p3"="">This plastic recycling washing line is designed for waste plastic cleaning and recycling.
It can be used for plastic bottles, barrels, buckets, containers, trays, sheets and other rigid plastic materials.
The whole line can complete material feeding, crushing, washing, separating, dewatering, drying and collecting.
Machine configuration can be customized according to raw material condition, production capacity and final product requirements.
01 / Product Overview
Our plastic recycling washing line is mainly used for cleaning waste plastic materials and producing clean plastic flakes.
It can effectively remove labels, dust, sand, oil, mud and other impurities from waste plastic materials.
After washing and drying, the clean flakes can be used for further recycling, pelletizing or selling.
Main Application:
HDPE/PP/PE Bottle
Final Product:
Clean plastic flakes
Capacity Range:
300-2000 kg/h
Customized Service:
Available
Main Process:
Feeding → Crushing → Washing → Floating Separation → Dewatering → Drying → Collection
02 / Suitable Raw Materials
This production line is suitable for different kinds of waste plastic materials:
- HDPE barrels
- PP buckets
- PE containers
The machine structure and process flow can be adjusted according to different materials.
03 / Final Product
After washing, the final material will become clean plastic flakes.
Final Product Features:
- Clean surface
- Low impurity
- Uniform flake size
- Suitable for pelletizing
- Suitable for further recycling
04 / Product Advantages
1. Complete Washing Process
The whole line includes crushing, washing, separating, dewatering and drying.
It helps remove dirt, labels, sand, oil and other impurities from waste plastic.
2. Wide Application
Suitable for HDPE, PP, PE and other rigid plastic materials.
3. Customized Design
The production line can be customized according to customer’s raw material, capacity, factory layout and final product standard.
4. Stable Operation
The complete line is designed for continuous production with stable running performance.
5. Easy Maintenance
Simple structure, practical design and convenient daily maintenance.
05 / Technical Parameters
|
Model
|
Capacity
|
Installed Power
|
Water Supply
|
Area Required
|
|
MEB-300
|
300kg/hr
|
130KW
|
5-6m³/hr
|
38*4.5*5m
|
|
MEB-500
|
500kg/hr
|
145KW
|
7-8m³/hr
|
38*4.5*5m
|
|
MEB-1000
|
1000kg/hr
|
190KW
|
8-10m³/hr
|
42*5*5m
|
|
MEB-1500
|
1500kg/hr
|
230KW
|
10-15m³/hr
|
45*5*5m
|
|
MEB-2000
|
2000kg/hr
|
280KW
|
15-20m³/hr
|
45*5*5m
|
Note:
The above parameters are for reference only.
The final configuration will be customized according to raw material condition and production requirements.
06 / Final Product Quality Reference
|
Item
|
Standard Range
|
Test Method
|
| Moisture |
≤1% |
Hot air drying test |
| Flake Size |
8-16 mm |
Visual / measuring |
| Impurity Content |
≤20 ppm |
Visual inspection |
| PVC Content |
≤20 ppm |
Optical sorting / manual inspection |
| IV Value |
0.72-0.85 dl/g |
Laboratory test |
Note:
This quality data is for reference.
Actual result depends on raw material condition, machine configuration and washing process.
07 / Main Machine Introduction
Belt Conveyor
Used for feeding waste plastic materials into the next machine evenly and continuously.

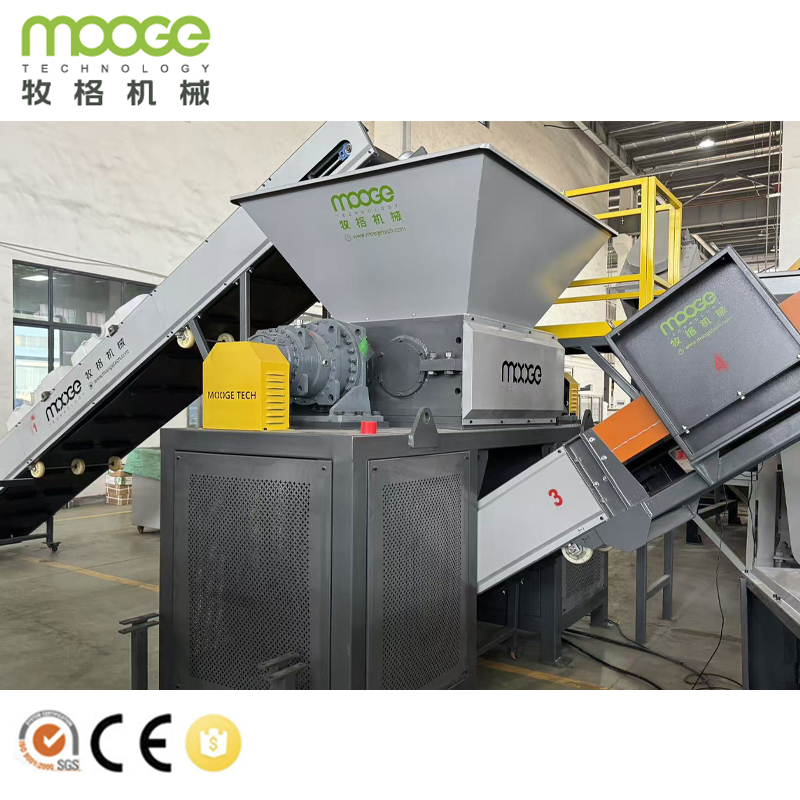

Crusher / Shredder
Used to cut large plastic materials into small flakes or pieces.
This makes the material easier to wash and process.

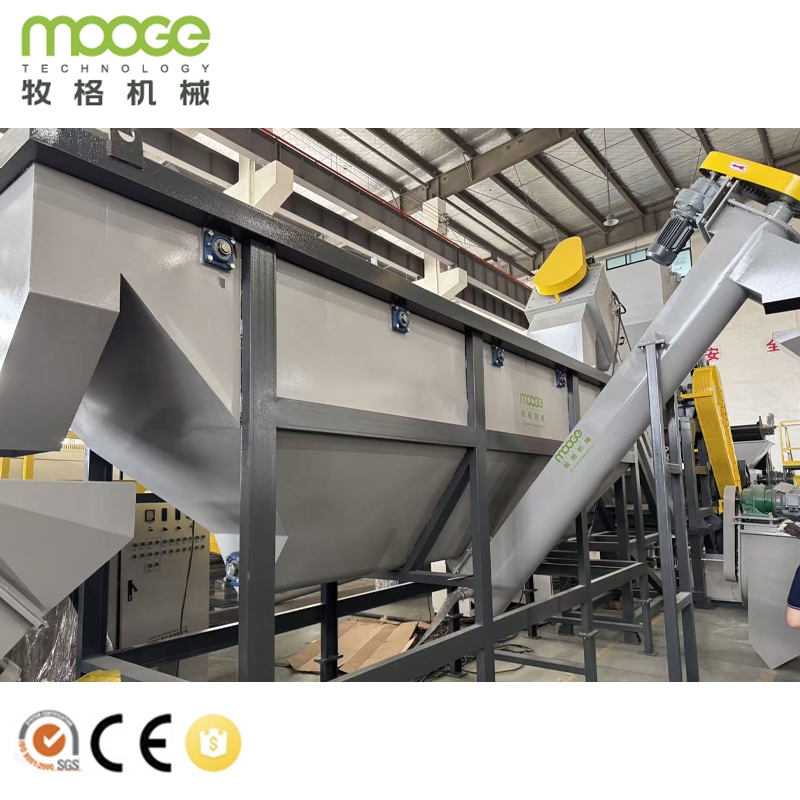

Floating Washing Tank
Used for washing and separating materials by water density.
For example:
PP and PE usually float in water.
PET, PVC, ABS and some other materials usually sink in water.
Friction Dewatering Machine
Used for Floating washing separate the sand, soil and other dirties
Horizontal Dewatering Machine
take out dirty and remover water from the bottle flakes
08 / Customized Solution
We can provide customized recycling solutions according to different customer requirements.
To recommend a suitable solution, please tell us:
- What material do you want to recycle?
- What is the material size?
- Is the material clean or dirty?
- What capacity do you need per hour?
- What is your final product requirement?
- Do you need a complete washing line or single machine?
According to your information, we can design a suitable process flow and machine configuration.
09 / Customer Cases
Our plastic recycling washing lines have been used in different recycling projects.
We can provide suitable machine configuration according to different materials and different production needs.
10 / Packaging & Delivery
Before delivery, the machines will be checked and tested carefully.
We use suitable packaging methods to protect the machines during transportation.
Packaging Method:
Plastic film / Wooden case / Steel frame / Container loading
Delivery Method:
By sea / By land / According to customer requirement
11 / Why Choose Us
- Complete plastic recycling solution
- Customized machine configuration
- Practical process design
- Stable machine performance
- Suitable for different plastic materials
- Factory layout support
- Installation and operation guidance
- Timely after-sales service
Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.
12 / Contact Us
If you are interested in this plastic recycling washing line, please contact us.
Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.
Contact us now to get a customized plastic recycling solution.
