Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine

Minimum Order Quantity : 1 Set Price : USD 48,000 – 50,000 / Set (depending On Capacity & Configuration)
Packaging Details : Export Standard Packaging / Wooden Case / Film Wrapping Delivery Time : 75-80 days
Payment Terms : L/C, D/P, T/T Supply Ability : 1 SET PER 65-85 days
Place of Origin: China Brand Name: MOOGE
Certification: CE Model Number: YSL

Detail Information
Machinery Test Report: Provided Material: HDPE, PE/PP, LLDPE, ABS/PP, PP, ABS
After-sales Service Provided: Engineers Final Product: Clean Plastic Pellets
Brand Name: MOOGE Warranty: 1 Year
Inverter: ABB Capacity: Varies By Model, Typically 100-1000 Kg/hour
Highlight:

PP PE plastic granulating machine

,

waste PP PE pelletizing machine

,

plastic granulator with warranty

Product Description

Product Overview

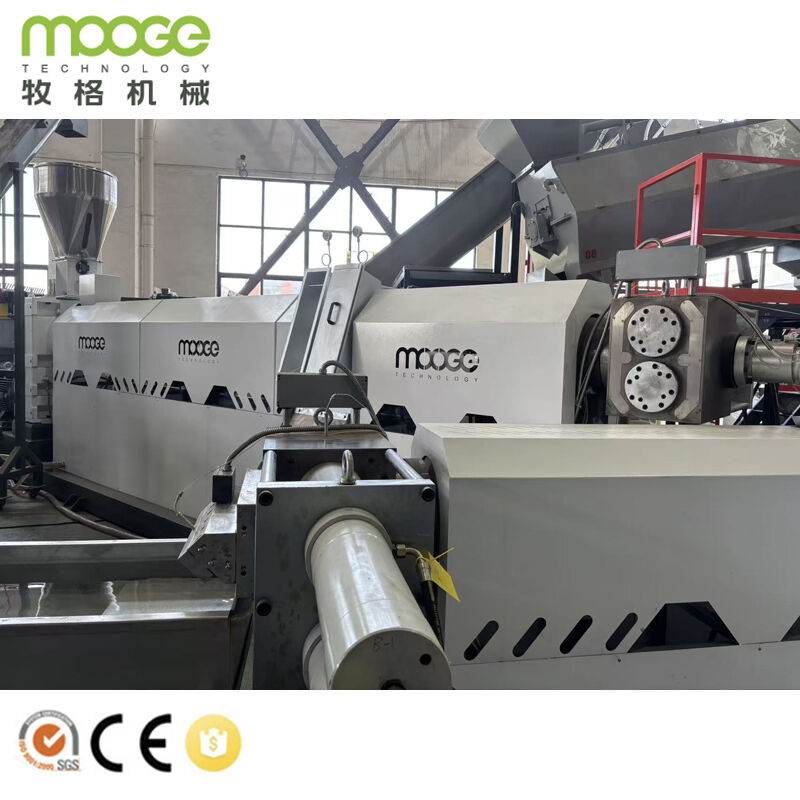

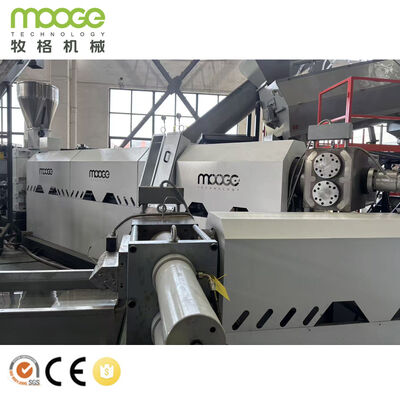

Rigid Plastic Double Stage Pelletizing Line

The Rigid Plastic Double Stage Strand Pelletizing Line is specially designed for recycling rigid plastic flakes and regrinds into high-quality pellets. Equipped with a two-stage extrusion system, vacuum degassing, hydraulic screen changer, and strand pelletizing unit, it effectively removes moisture, volatile gases, and impurities, producing uniform pellets suitable for repeated processing.

Specification

Applications
The Rigid Plastic Double Stage Strand Pelletizing Line is specially designed for recycling various rigid plastic materials, including HDPE, PP, ABS, PS, PC, and other engineering plastics. It is suitable for processing washed plastic flakes, crushed regrinds, injection molding runners, blow molding scraps, plastic bottles, drums, crates, pallets, buckets, and industrial production waste. The finished recycled pellets can be widely used in injection molding, blow molding, pipe extrusion, sheet extrusion, and the production of various plastic products, providing an efficient and economical recycling solution for plastic manufacturers and recycling plants.


Technical Specifications

Model
Screw Diameter
Screw L/D
Main Motor Power
Capacity
YSL-SJ85
85mm
28-33:1
55KW
150-200kg/hr
YSL-SJ100
100mm
28-33:1
75KW
200-300kg/hr
YSL-SJ130
130mm
28-33:1
90KW
300-400kg/hr
YSL-SJ150
150mm
28-33:1
110KW
400-500kg/hr
YSL-SJ160
160mm
28-33:1
132KW
500-600kg/hr
YSL-SJ180
180mm
28-33:1
160KW
600-800kg/hr
YSL-SJ200
200mm
28-33:1
200KW
800-1000kg/hr


Screw loader and Dosing Feeder

Use to loading flakes into dosing feedingDosing feeding the material into exturder
Keep the exturder more stable working

Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine

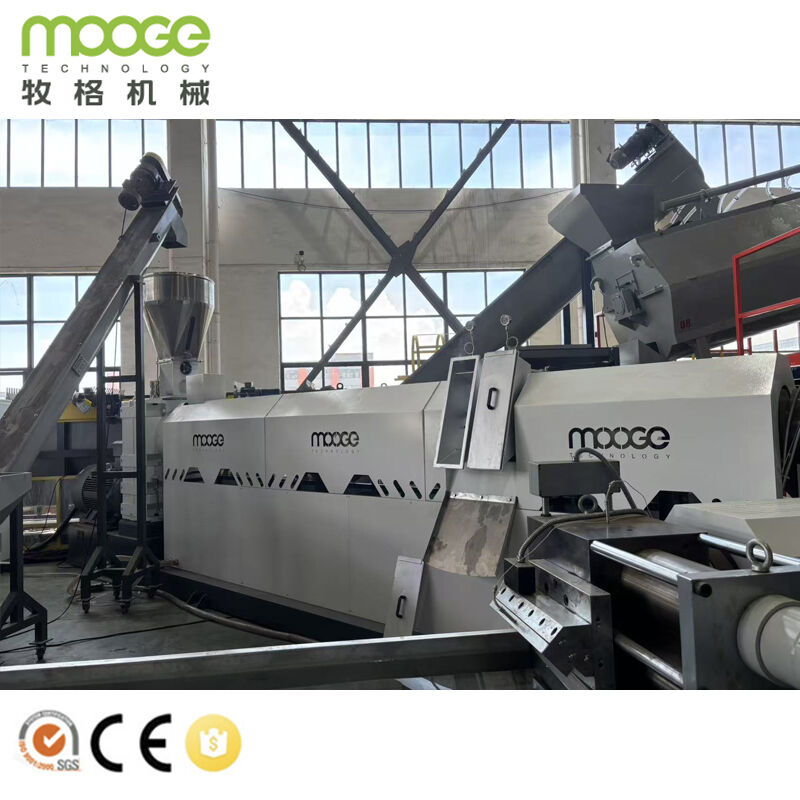

Single Screw Extruder

The single screw extruder is built with a strong and heavy-duty frame to ensure stable operation without vibration during machine running. The complete frame, where the gearbox, motor and screw system are installed, is precisely milled to improve installation accuracy and machine stability. The frame is made of square steel tubes with thick steel plates on the top, providing high strength, durability and long service life.



Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine

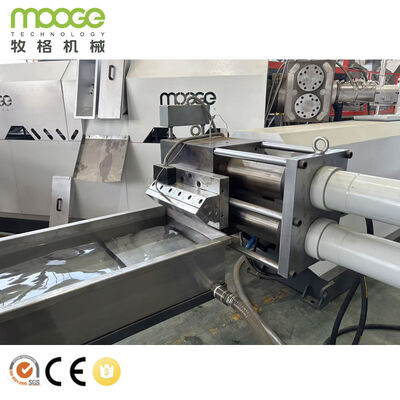

Hydraulic Screen Changer

Double position single board model
Driven by a hydraulic system, the screen changing process is fast, reliable, and easy to operate. It is especially suitable for recycling materials containing paper, aluminum, wood, dust, or other contaminants, significantly improving filtration efficiency and pellet quality while reducing downtime and labor costs.
Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine

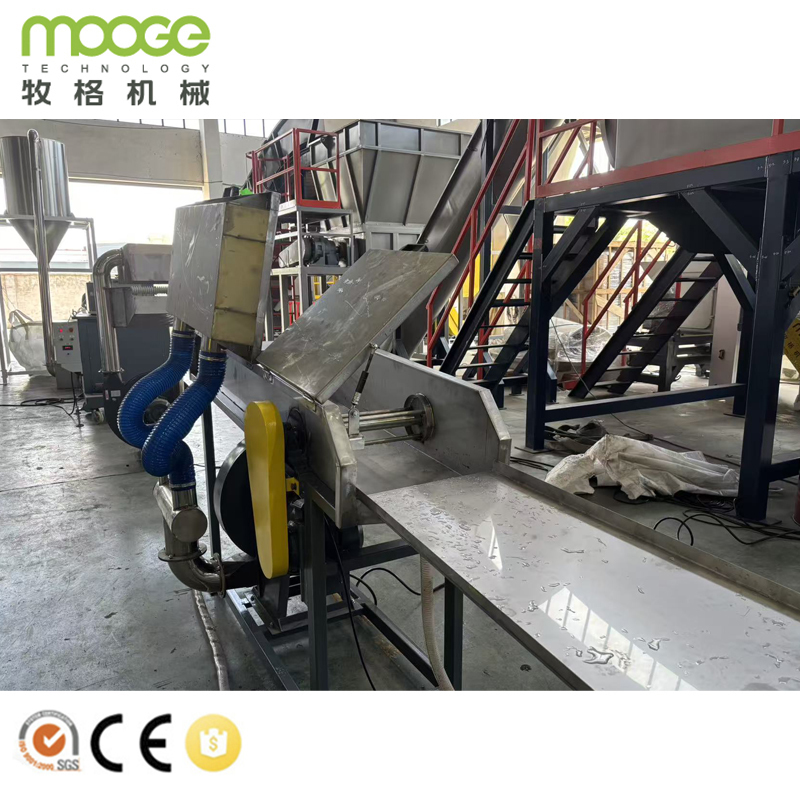

Cutting Machine



Cutting the material into pellets

Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine


Company Profile

Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing MachinePlastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

  1. What material do you want to recycle?
  2. What is the material size?
  3. Is the material clean or dirty?
  4. What capacity do you need per hour?
  5. What is your final product requirement?
  6. Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

  • Complete plastic recycling solution
  • Customized machine configuration
  • Practical process design
  • Stable machine performance
  • Suitable for different plastic materials
  • Factory layout support
  • Installation and operation guidance
  • Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
