PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

Contact Now

PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

Price :	$20,000.00/sets 1-4 sets	Packaging Details :	wooden case of plastic film
Supply Ability :	20 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE TECH
Certification:	CE ISO

Detail Information
Condition:	New	Plastic Type:	Pp Pe Pvc
Machine Type:	Plastic Shredder	Max.Production Capacity (kg/h):	2000
Production Capacity (kg/h):	300 - 2000 Kg/h	Use:	Plastic Pipe Crusher
Shaft Design:	Single	Voltage:	380V/50Hz/3Phase
Dimension(LWH):	12262109cm	Power (kW):	45
Weight (T):	2	Warranty:	1 Year, 12 Months
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Automatic
Showroom Location:	Egypt	Marketing Type:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support	Color:	Client's Requirements
Application:	Waste Plastic Products	Blades Material:	9CrSi/D2/SKD-11
Other Name:	Plastic Crusher	Usage:	Rubber ShreddingWaste Plastic Shredding
Shaft Diameter:	200-400mm	Shaft Width:	800mm
Shaft Dia.:	400mm	After Warranty Service:	Online Support
Local Service Location:	Egypt	Port:	Shanghai
Highlight:	PVC heavy duty plastic shredder machine , HDPE heavy duty plastic shredder machine , 400MM plastic recycling shredder

Product Description

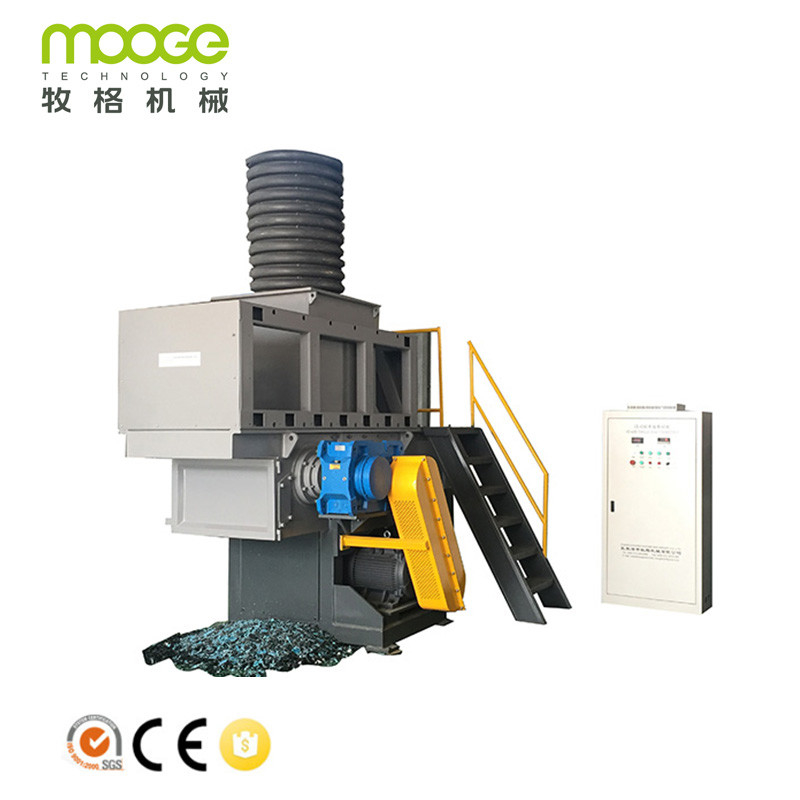

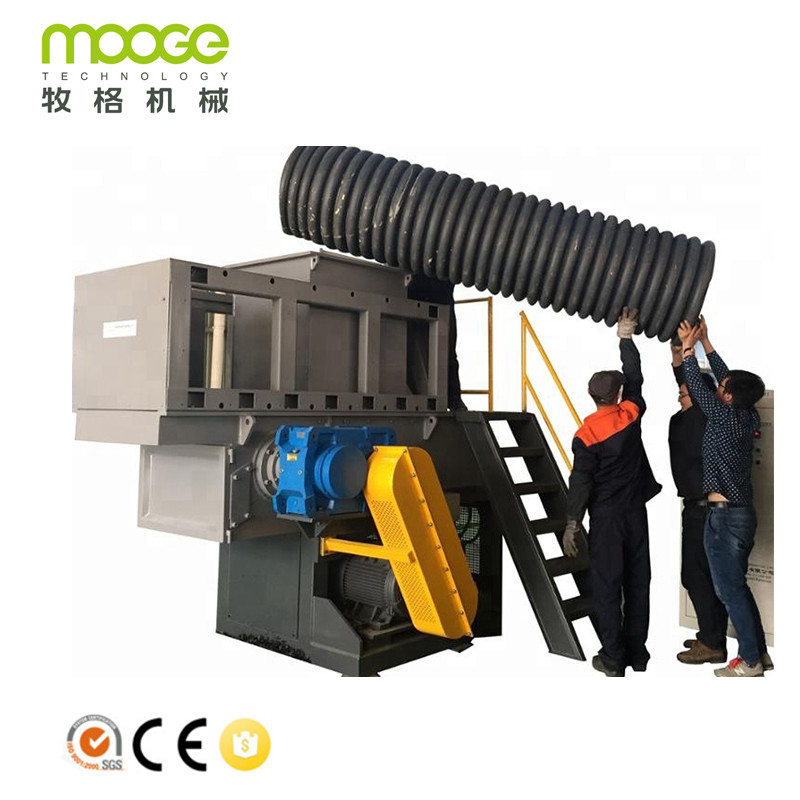

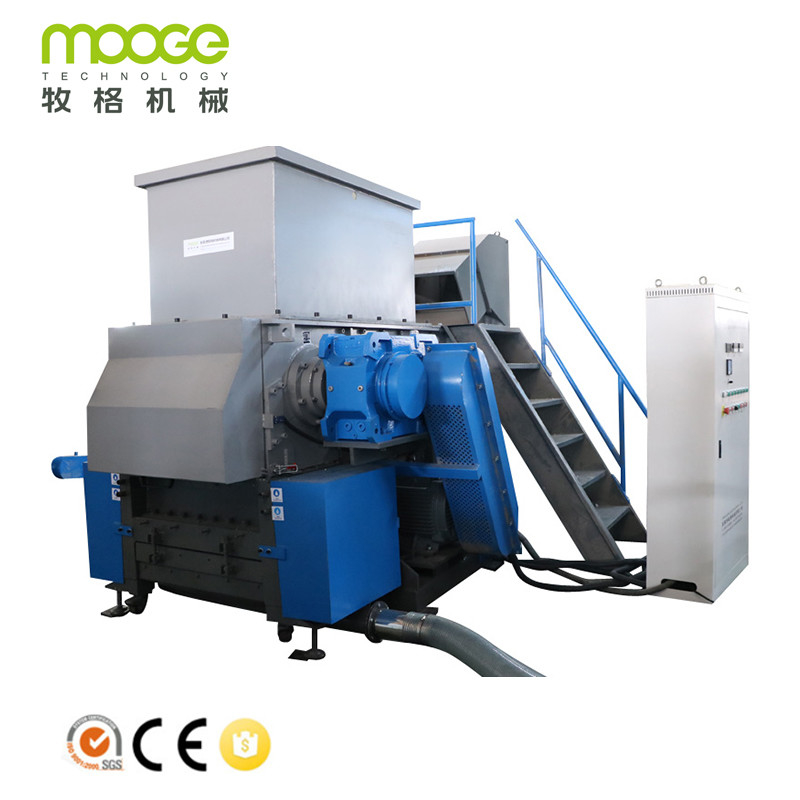

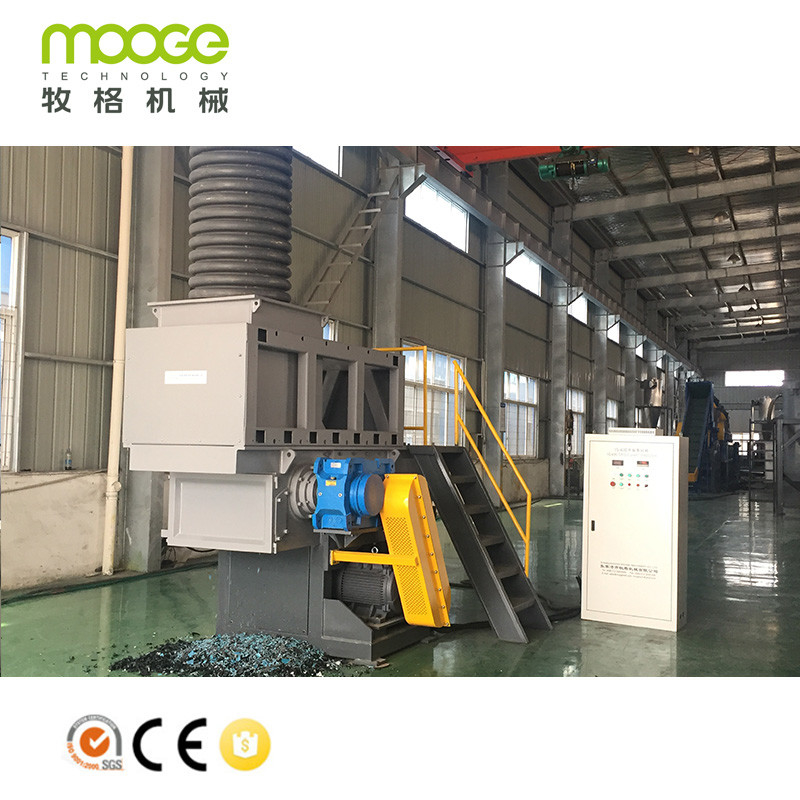

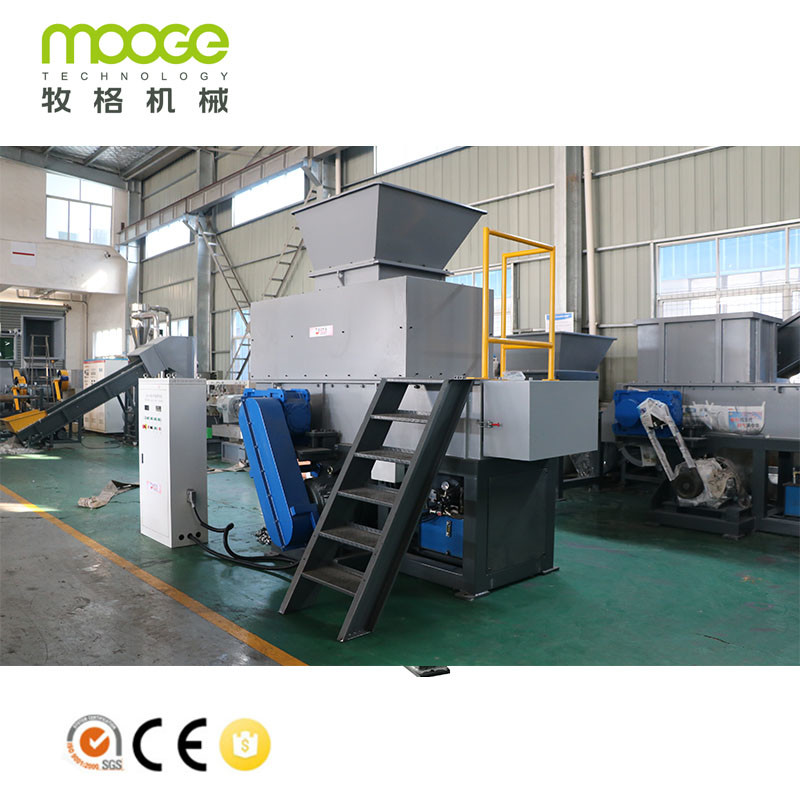

Big Diameter HDPE PVC pipe plastic shredder /recycling shredding machine

Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.

single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.

Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.

1. It adopts PLC control system, automatic overload protection and auto reverse switch

2. Good shaft structure design, low noise,
blades easy changeable

3. The low rotation speed results in a particularly quiet shredding process with low levels of dustgeneration

4. It can be adjusted according to customer specific requirements for throughput volume

Product Paramenters

Model	VS-2860	VS-4080	VS-40100	VS-40120	VS-40150	VS-48150
Motor	22KW	37KW	45KW	55KW	75KW	90KW
Rotor speed	83 RPM	83 RPM	83 RPM	83 RPM	83 RPM	83 RPM
Rotor Diameter	280 mm	400 mm	400 mm	400 mm	400 mm	480 mm
Rotor Blade Qty	26 PCS	38 PCS	46 PCS	58 PCS	74 PCS	111 PCS
Fixed blade Qty	1 PCS	2 PCS	2 PCS	2 PCS	3 PCS	3 PCS
Screen diameter	60mm	60mm	60mm	60mm	60mm	60mm
Capacity	300 kg/h	600 kg/h	800 kg/h	1000 kg/h	1500 kg/h	2000 kg/h

Product Photos

Rotary shaft

The rotary shaft made by high quality carbon steel,anti-worn

Rotary blade

Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time

Fixed Blade

Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material

Screen

the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down

Motor,Using Beide brand motor(siemens standard motors ltd in china)

Bearing,Using Japan famous brand- NSKoriginal import from Japan factory We also supply SKF bearing for customer

Contactor,Use Schneider brand in us control system

PLC,Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary

Before shredding(Raw materail)

After shredding(Plastic flakes)
