Raffia Jumbo Industrial Plastic Shredder Machine For Recycling PE PP

Price :	$29,000.00/sets 1-4 sets	Packaging Details :	film or wooden case for customized
Supply Ability :	20 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE TECH
Certification:	CE ISO

Detail Information
Condition:	New	Plastic Type:	PP/PE
Machine Type:	Plastic Shredder	Max.Production Capacity (kg/h):	2000
Production Capacity (kg/h):	300 - 2000 Kg/h	Use:	Film Crusher
Shaft Design:	Double	Voltage:	380V/50Hz/3Phase
Dimension(LWH):	3690(L)X2680(W)X2600(H)	Power (kW):	45
Weight (T):	2	Warranty:	1 Year, 12 Months
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Automatic
Showroom Location:	Egypt	Marketing Type:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support	Application:	PE/PP Film,PP Woven ,Jumbo Bags
Blades Material:	SKD-11	Product Name:	VSD-Series
Shaft Width:	600*2	Move Blades Qty:	30*2
Main Motor:	37kw*2	Blade:	Easy Changeable
Brand:	SIEMENS	After Warranty Service:	Online Support
Local Service Location:	Egypt	Port:	Shanghai
Highlight:	raffia industrial plastic shredder machine , jumbo industrial plastic shredder machine , PE shredder machine for plastic recycling

Product Description

PP Jumbo Bags Shredder,PP Raffia Bags Shredder,PP big bags shredder

Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.

VSD Double-single shaft shredder machine can shredding woven bags ,jumbo bags, plastic film tc.

Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.

Shredder machine advance

1. It adopts PLC control system, automatic overload protection and auto reverse switch

2. Good shaft structure design, low noise,
blades easy changeable

3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation

4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Model	VSD-4060	VSD-4080	VSD-40100	VSD-40120
Motor	30KWX2	37KWX2	37KWX2	45KWX2
Rotor speed	83 RPM	83 RPM	83 RPM	83 RPM
Rotor Diameter	400mm	400 mm	400 mm	400 mm
Rotor Blade Qty	72 PCS	96 PCS	120 PCS	144 PCS
Fixed blade Qty	2 PCS	4 PCS	4 PCS	4 PCS
Screen diameter	60mm	60mm	60mm	60mm
Capacity	300 kg/h	600 kg/h	1000 kg/h	1500 kg/h

Product Photos

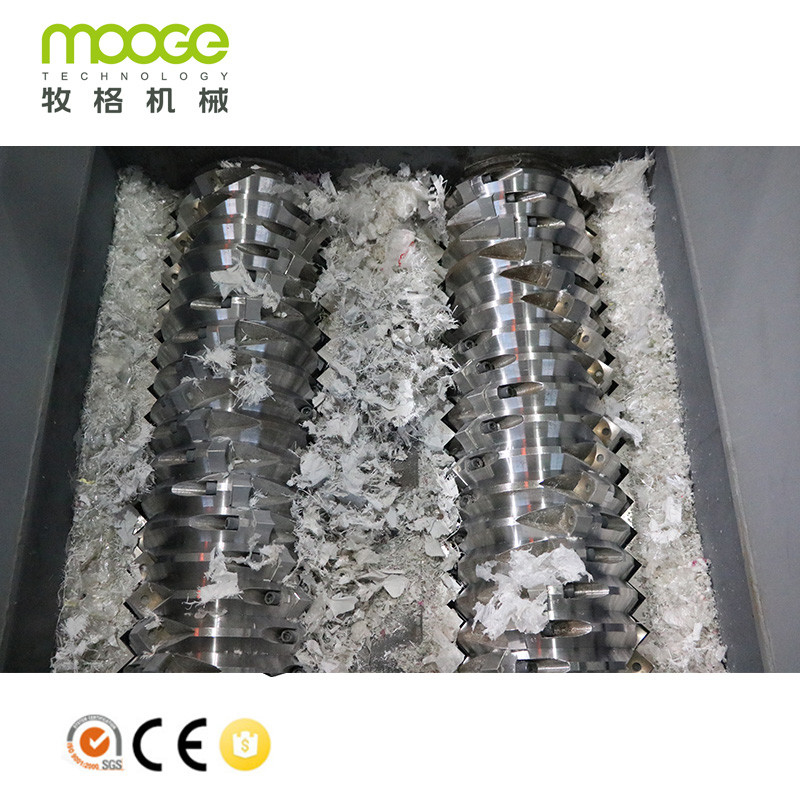

Rotary shaft The rotary shaft made by high quality carbon steel,anti-worn

Rotary blade

Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
