PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

Contact Now

PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

Price :	$310,000.00/sets 1-1 sets	Packaging Details :	We usually use wrapping film to pack it or customized according to customer.
Supply Ability :	1 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	MOOGE

Detail Information
Capacity:	500kg/hr - 5000kg/hr	Application:	PET Bottle Washing Production Line
Inverter:	Delta	Port:	Shanghai
Condition:	New	Automatic Grade:	Semi-automatic
Plastic Type:	PET	Production Capacity (kg/h):	500 - 6000
Machine Type:	Plastic PET Bottle Recycling Washing Machine	Equipment List:	Trommer, Pre-washer, Bale Opener, Dewatering Machine, Floating Washing Tank, Hot Air Dryer, Frication Washer, Label Separator, Label Remover, Hot Washing Tank, Crusher
Max.Production Capacity (kg/h):	6000	Voltage:	380V, 50HZ,3P (can Be Customized)
Dimension(LWH):	8586 M	Power (kW):	600
Weight (T):	68	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Applicable Industries:	Manufacturing Plant, Food Shop, Recycling	Showroom Location:	Turkey, Mexico
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Engine, Bearing, Gearbox, Motor, Gear
Raw Material:	PET Bottle Waste	Final Product:	Clean PET Bottle Flakes
Material Processed:	Crushing-washing-drying	Keywords:	Plastic PET Bottle Recycling Machine
Flakes Size:	12-14 Mm	Moisture Content:	<1%
PVC Content:	Less Than 150 Ppm	Contactor:	Schneider Brand
Highlight:	PET bottle recycling plastic machinery , cola bottle recycling plastic machinery , 6000kg/h bottle conveyor belt

Product Description

Waste plastic PET cola bottle recycling plastic machinery equipment

Product Overview

Waste plastic PET cola bottle recycling plastic machinery equipment

This series plastic PET washing line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The plastic PET recycling line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.

The production line can be placed in a straight line,also we can install the line as “U” or “L” shape.

All your requirements of the plastic PET washing machine will be customized.

Products Description

MT-2000 Recycled waste drinking water bottle plastic PET washing line components list

SN:	ITEM NAME	SN:	ITEM NAME
1	Steel Chain Conveyor Underground	20	1st Hot washing Tank With working platform
2	De-baling Machine	21	Screw Loader
3	Conveyor Belt	22	2nd High Speed Friction Dewatering washer
4	Trommel Machine	23	2nd Hot washing Tank With working platform
5	High Platform For Trommel	24	Screw Loader
6	Pre-Sorting Conveyor Belt	25	3rd High Speed Friction Dewatering washer
7	High Platform for Pre-sorting	26	2nd Floating washing tank With working platform
8	Magnetic Drum	27	Screw Loader
9	De-Labelling Machine (Dry Type)	28	3rd Floating washing tank With working platform
10	Conveyor Belt	29	Screw Loader
11	Manual Sorting conveyor	30	4th Floating washing tank With working platform
12	Automatic Metal detector	31	Screw Loader
13	Side conveyor For metal detector	32	Horizontal Dewatering Machine
14	Conveyor Belt	33	Hot air dryer
15	Crusher	34	Zig-zag air classifier
16	Screw Loader	35	Magnetic Box deferrization
17	1st Floating washing tank With working platform	36	Pneumatic Packing Silo
18	Screw Loader	37	Electric control panel
19	1st High Speed Friction Dewatering washer	38	Free spare parts

FEATURES AT A GLANCE

1- Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation.

2- Rotor shaft made by seamless steel tube,With drain hole on the bottom of tank,With the water spraying system

3- We have the Bale opening and feeding system which and equally feeding the material save labor

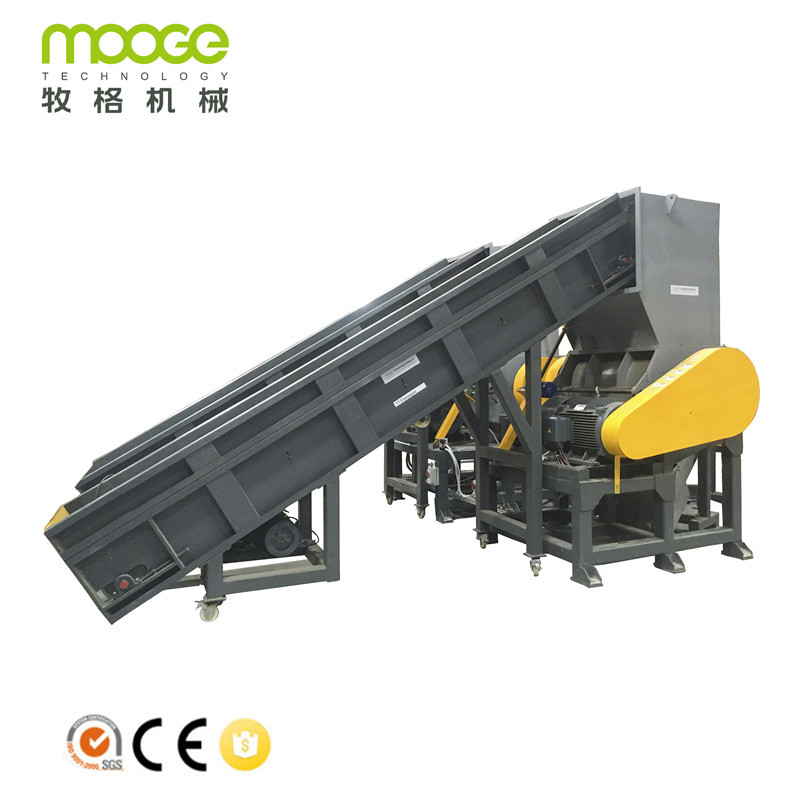

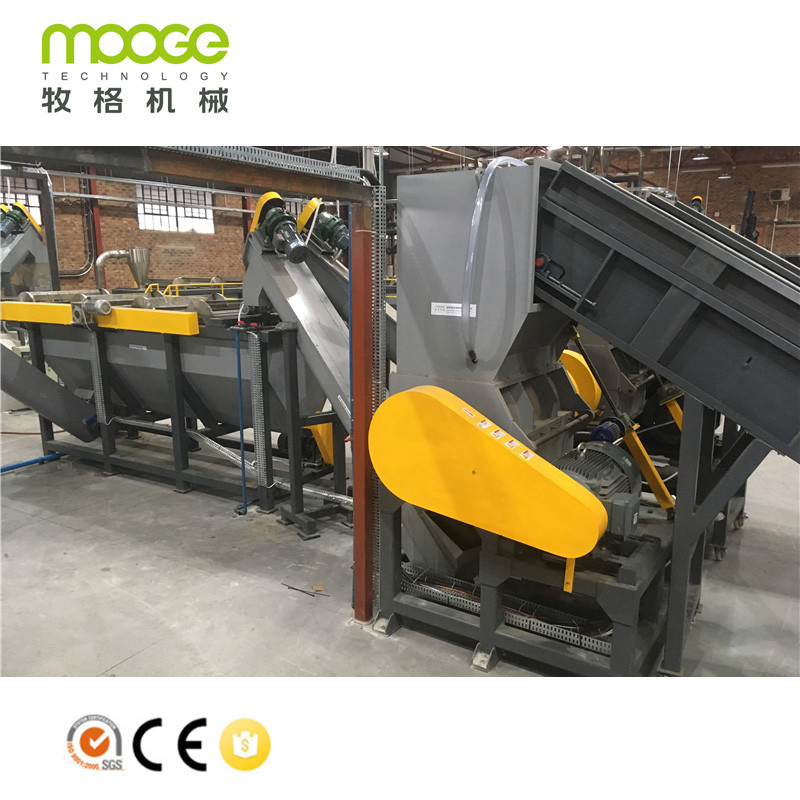

Crusher Machine

Floating Washing Tank

De-baling Machine

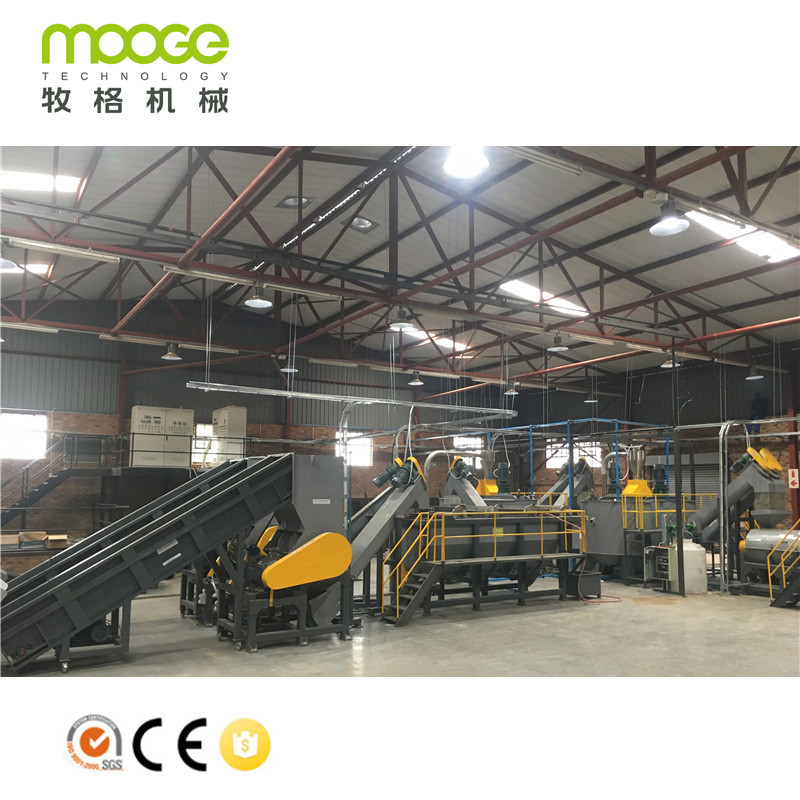

Customer Onsite

Label Remover Machine

Function:remove the labels from the bottle and separate label out from bottles Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable The barrel designed with doors opening on it very easy to opening and maintenance The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Metal Detector

Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm Precision for non-Ferrous>3.2mm

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG

Final “Zig-zag” label separator

The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower with air flow adjustable,With valve to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

Exhibition

Product packaging

1- For the loose cargo we will packing by Wooden box 2- For the Full container loading we are packing the machine by film and some on pallet accordingly 3- We can shipping the goods by air or by sea 4- We will send pictures of cargo loading to our client to check and keep recording 5- we can send cargo to client’s warehouse to loading

After Sales Service

Service before sale 1, 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager ) 2,Professionally and patiently introduction,details pictures and working video to show machine Service on sale : 1,Test every machine and inspect the machine seriously . 2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery. Service after sale 1, Free insurance for goods 2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
