Rubber Portable Conveyor Belt For Baler Machine PP Bottle Transfer Conveyor
Contact Person : Linna Zhao
Phone Number : +8615150220986
Whatsapp : +8615150220986
| Price : | $8,000.00/sets 1-1 sets | Packaging Details : | Film with wooden box |
|---|---|---|---|
| Supply Ability : | 100 Set/Sets per Week |
| Place of Origin: | Jiangsu, China | Brand Name: | MOOGE |
|---|---|---|---|
| Certification: | CE | Model Number: | MD |
|
Detail Information |
|||
| Warranty: | 1 Year | Product Name: | Conveyor Belt Type Metal Detector Machine |
|---|---|---|---|
| Key Words: | Metal Detector | Width: | Customized |
| Alarm Mode: | Light And Buzzy Alarm | Type: | Full Automatic And Semi Automatic |
| Detection Method: | Electromagnetic Wave Detection | Color: | Black |
| Weight: | 200kg | Power Supply: | 380V Or Customized |
| Port: | Shanghai | ||
| Highlight: | Ferrous Chain Conveyor Machine,belt metal detector machine,20m/min metal detector machine |
||
Product Description

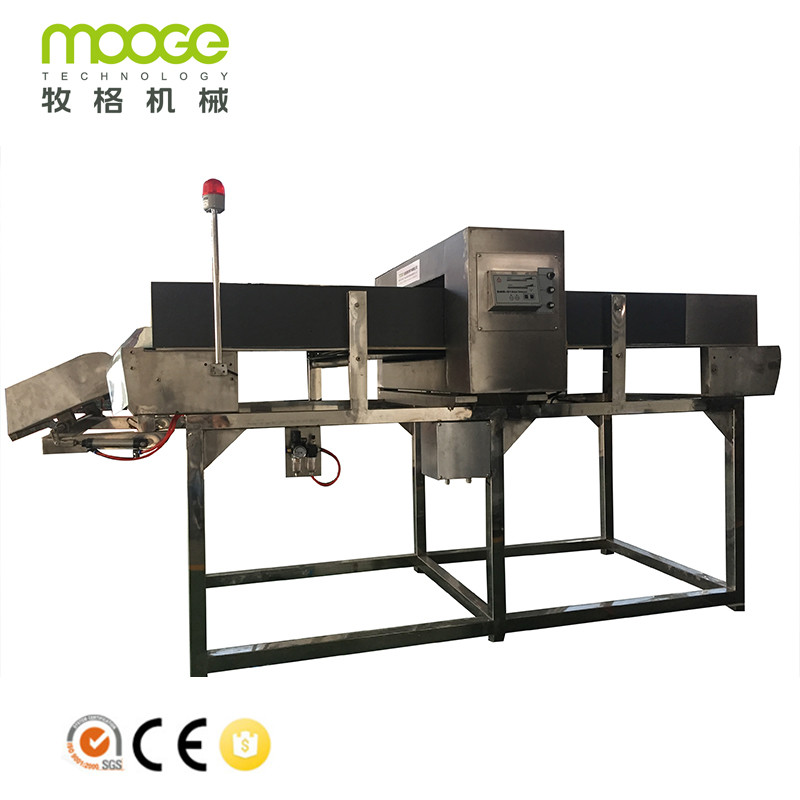

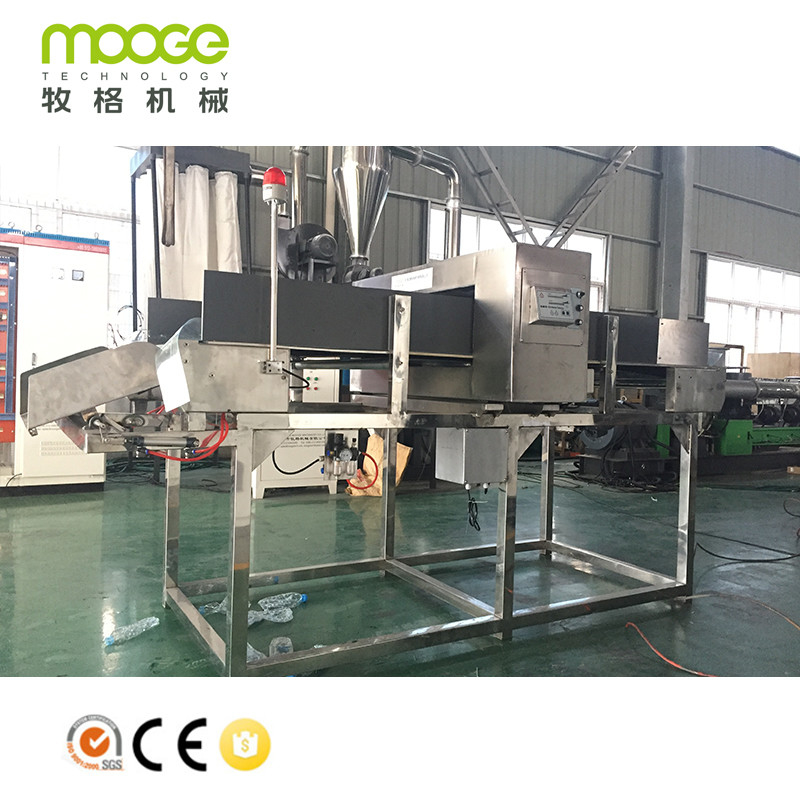

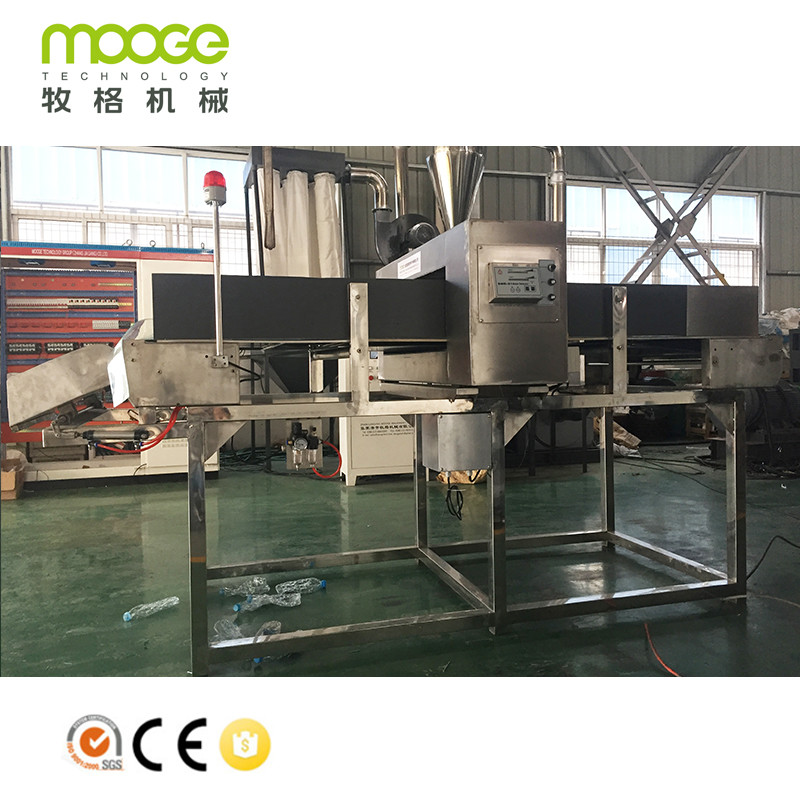

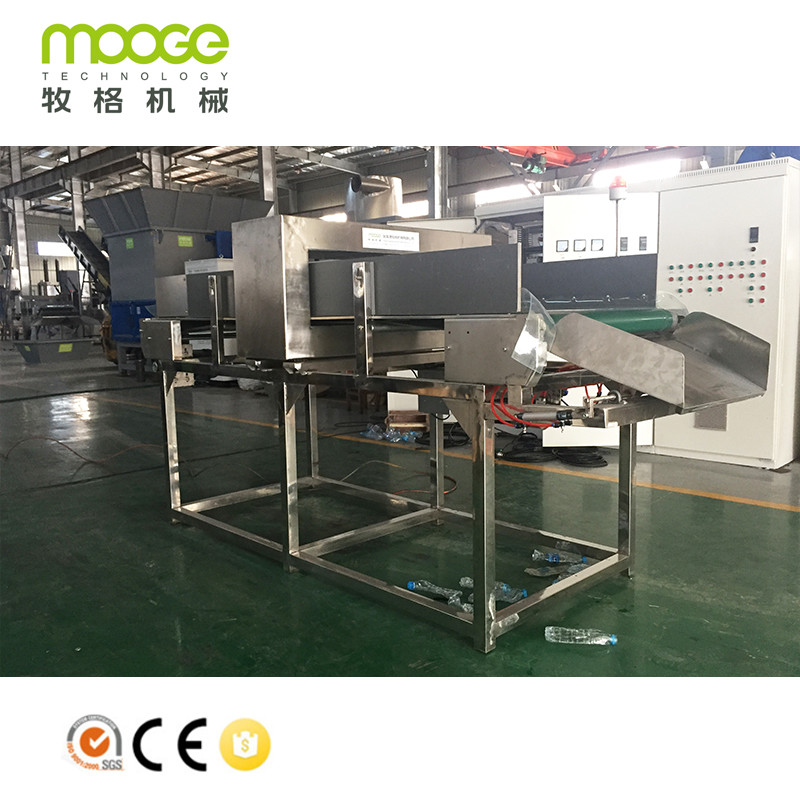

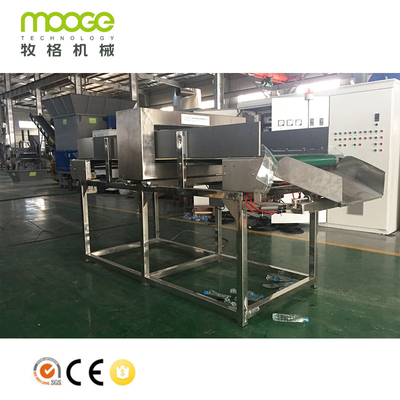

Conveyor Belt Type Metal Detector Machine
Used for Ferrous and non-Ferrous
Its a complete unit, integrated with a conveyor and eject out system
Once there is metal passing it, it will automatic eject out the metal bad bottles, non-stop the line.
Detecting precision: For Ferrous >Φ8mm
For non-Ferrous >Φ10mm
|
Tunnel width: 600mm/800mm/1000mm
|
|
|
|
Tunnel height: 250mm
|
|
|
|
Conveyor length: 2.5m
|
|
|
|
Conveyor width: 1000mm
|
|
|
|
Motor power: 0.37KW
|
|
|
|
Speed: 20m/min
|
|
|

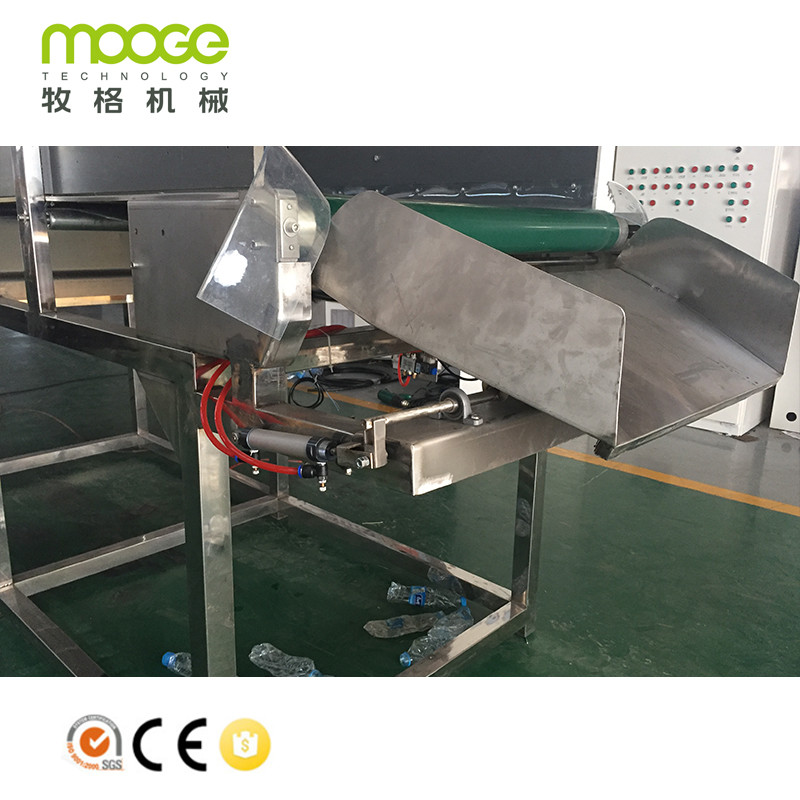

Air cylinder ejecting system one set
Air cylinder one unit with air flux adjust magnetic valve
Air supplying pressure: 0.6-0.8MPa
