HDPE LDPE LLDPE Rigid Flakes Plastic Recycling Extruder Machine

Contact Now

HDPE LDPE LLDPE Rigid Flakes Plastic Recycling Extruder Machine

Minimum Order Quantity :	1 SET	Price :	16890 USD 1 SET
Packaging Details :	Wrapped in Film	Delivery Time :	60 working days
Payment Terms :	T/T, L/C	Supply Ability :	1 SET per 2 month

Place of Origin:	China	Brand Name:	MOOGE
Certification:	CE	Model Number:	YSS-200

Detail Information
Control:	PLC	Frequency Invertor Brand:	ABB
Delivery Port:	Shanghai	Computerized:	Computerized
Cooling System:	Water Cooling	Marketing Type:	Ordinary Product
Plastic Type:	Rigid PP/PE	Electrical Part:	CUSTOMIZED
Product Type:	Granulating Machine	Gear Box:	Hard Tooth Surface Gear Box
Highlight:	HDPE Plastic Pelletizing Machine , LDPE Plastic Pelletizing Machine , Rigid Flakes Plastic Pelletizing Machine

Product Description

PP/PE Rigid Flakes Pelletizing Line

HDPE LDPE LLDPE Rigid Flakes Plastic Recycling Extruder Machine 0

PP PE Rigid Flakes Pelletizing machinechine

In order to recycle waste plastic, the plastic need to be washed, dried then melted, plasticized, extruded into strips, cooled by cooling system, and cut into granules by granulator. These granules are further processed into various plastics products by blowing, injection and calendering. This line is a one/two stage plastic pelletizer/pelletizing/granulator , which is suitable for many kinds of plastic waste materials recycling such as PE, HDPE, LDPE, LLDPE,ABS,PS,PC bottle, hollow container, buckets ans so on.

Product Specification

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity Kg/hr
YDS-SJ100	100mm	25-33:1	45KW	150-200
YDS-120	120mm	25-33:1	75KW	200-300
YDS-150	150mm	25-33:1	110KW	400-500
YDS-160	160mm	25-33:1	132KW	500-600
YDS-180	180mm	25-33:1	160KW	600-800
YDS-SJ200	200mm	25-33:1	200KW	800-1000

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity Kg/hr
YSS-SJ100	100mm	25-33:1	45KW+22KW	150-200
YSS-SJ120	120mm	25-33:1	75KW+30KW	200-300
YSS-SJ150	150mm	25-33:1	110KW+37KW	400-500
YSS-SJ160	160mm	25-33:1	132KW+37KW	500-600
YSS-SJ180	180mm	25-33:1	160KW+45KW	600-800
YSS-SJ200	200mm	25-33:1	200KW+55KW	800-1000

FEATURES AT A GLANCE

Screw loader and Dosing Feeder

Use to loading flakes into dosing feeding

Dosing feeding the material into exturder

Keep the exturder more stable working

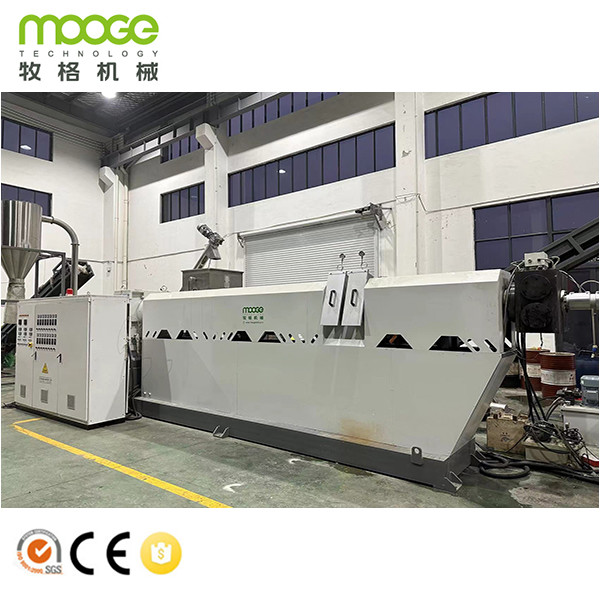

Single Screw Extruder

Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.

Vacuum Degassing System

With the vacuum degassing system

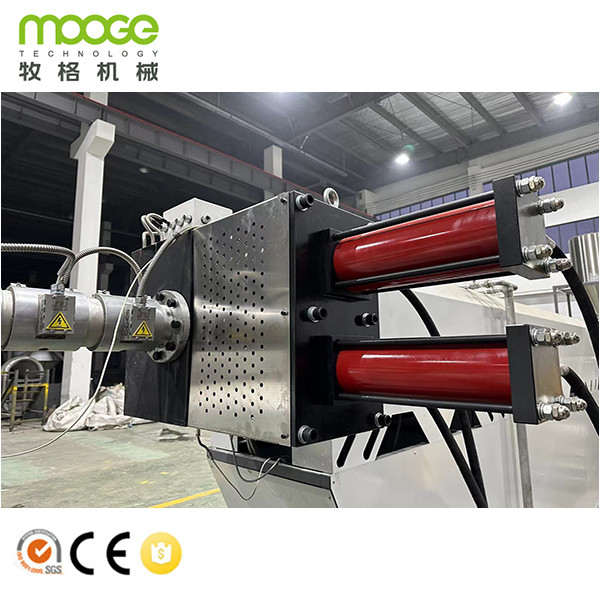

Hydraulic Screen Changer

Double position board model
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.

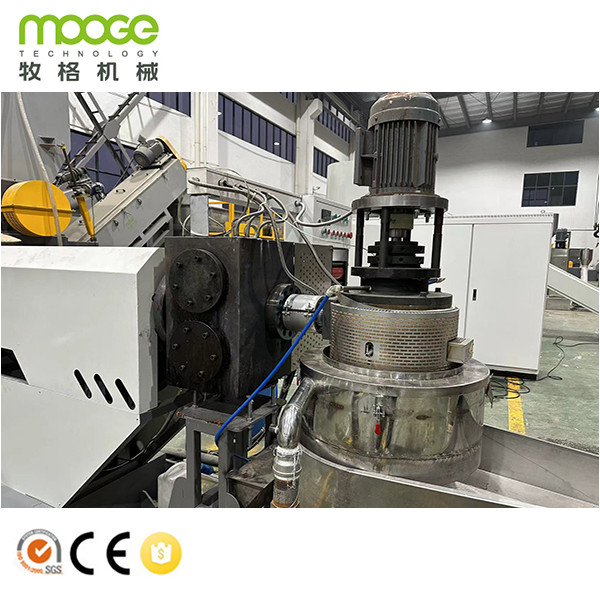

Degassing Die Head

Made by 40Cr material with tempering and quenching treatment. Design as a material disperser so the material comes out as noddle, so it can remove the air and humidity from the material.

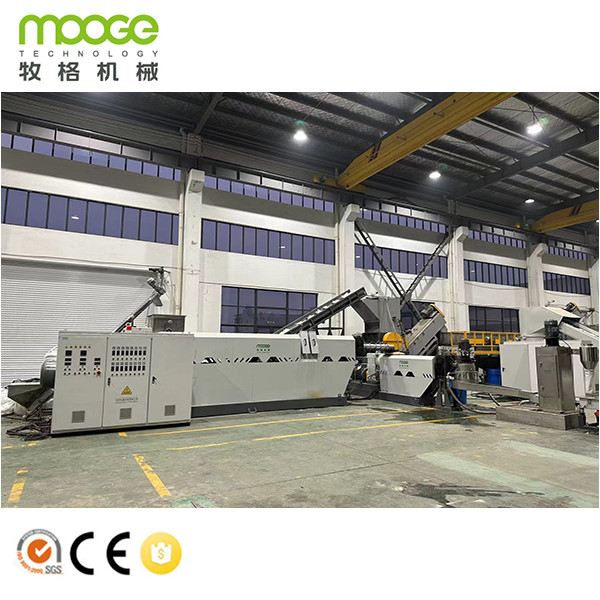

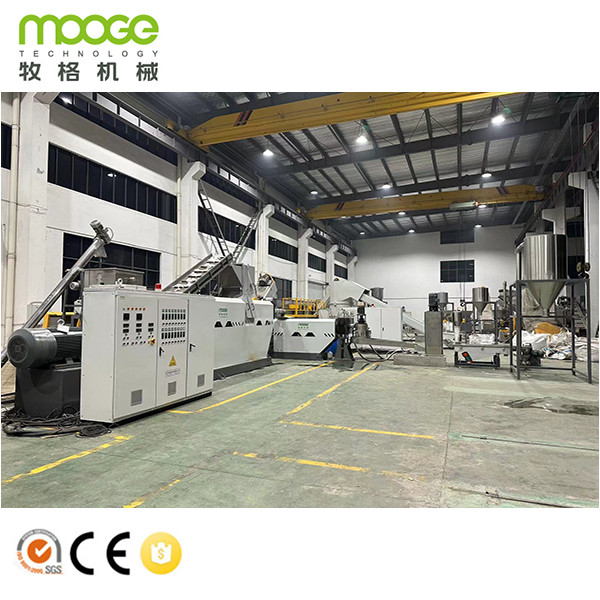

Product Photos

Our Service

Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale

1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service After Sale

1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.

Die Head

Die mold made by the 40Cr material with forging treatment, surface been nitriding treatment and manufacturing by CNC
