PET Plastic Auxiliary Machinery 500-5000kg/H Bottle Label Remover For Recycling

Contact Now

PET Plastic Auxiliary Machinery 500-5000kg/H Bottle Label Remover For Recycling

Price :	$14,000.00/sets 1-2 sets	Packaging Details :	Package by film
Supply Ability :	10 Set/Sets per Quarter

Place of Origin:	Jiangsu, China	Brand Name:	mooge

Detail Information
Application:	PET Bottle Recycling	Condition:	New
Automatic Grade:	Automatic	Plastic Type:	PET, Wast HDPE PP PET Bottles
Production Capacity (kg/h):	500 - 5000	Machine Type:	PET Bottle Washing Line
Equipment List:	Label Separator, Label Remover	Max.Production Capacity (kg/h):	5000
Voltage:	Customer Standard	Dimension(LWH):	400018003800 Mm
Power (kW):	15KW	Weight (T):	5
Warranty:	1 Year	Key Selling Points:	Manufacture
Video Outgoing-inspection:	Provided	Applicable Industries:	Manufacturing Plant, Plastic Recycle
Showroom Location:	United Kingdom, United States, Brazil, Saudi Arabia, Russia	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Motor Brand:	Siemens
Material:	Stainess Steel	Blades:	Alloy Blades
Inverter:	ABB	Raw Material:	Waste PE PP PET Bottle
Label Remove Effective:	98%	Port:	Shanghai Sea Port
Highlight:	PET Plastic Auxiliary Machinery , 500kg/h bottle label remover , 5000kg/h bottle label remover

Product Description

PET Bottle Label Remover Equipment for Bottle Recycling Line

Products Description

Label remover machine completely changes the status of artificial stripping label.At the same time ,the label remover machine greatly improves the production efficiency, reduces labor intensity and makes good economic and social benefits.
The working principle of PET bottle stripping machine:after feeding ,the bottles will be delivered to the discharge port by shaft where equipped with 116 alloy blades and show a certain angle and spiral rotation with centerline.The alloy blade on the blade stripped the label. Then there is a separation chamber to separate the peeled label from the PET bottles.
The label sheet is blown out from the fan, the bottles will go on the next process.

Product Paramenters

Model	LMD-7.5	LMD-15	LMD-22	LMD-30	LMD-37	LMD-45
Capacity	500kg/hr	1000-1500kg/hr	2000kg/hr	3000kg/hr	4000kg/hr	5000kg/hr
Motor Power	7.5KW	15KW	22KW	30KW	37KW	45KW
Rotor Diameter	630mm	630mm	720mm	720mm	850mm	850mm
Roller Length	3.5m	4.5m	4.5m	4.5m	4.5m	4.5m
Label Suction Fan Motor	4KW	4KW*2	4KW*2	4KW*2	4KW*2	4KW*2
Label Separation Rate	98%	98%	98%	98%	98%	98%

PET Plastic Auxiliary Machinery 500-5000kg/H Bottle Label Remover For Recycling 0

Product Photos

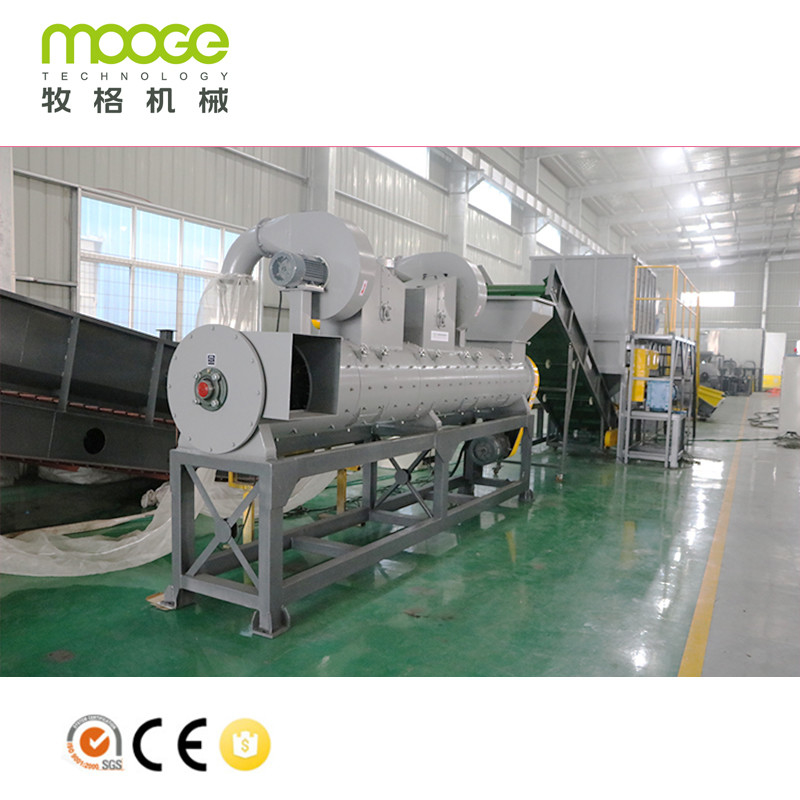

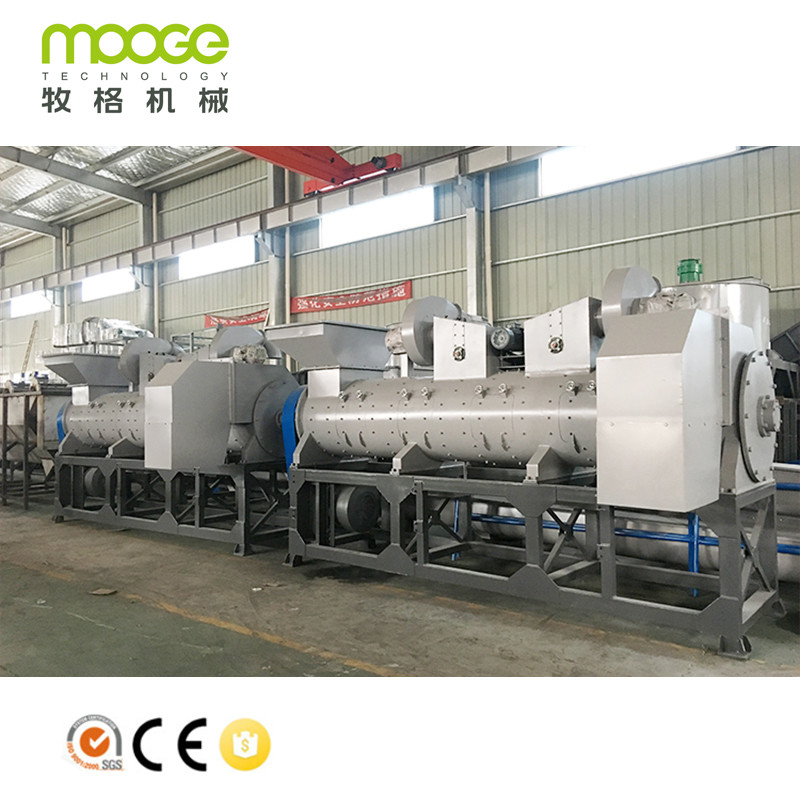

Label Remover Machine

Used to remove the labels from the bottle and separate label out from bottles.

Label remove effective: > 98%

Dry working without water

Using the seal ball bearing with NSK brand.
Bearing house is outside of machine body no dirty goes inside for long time use.

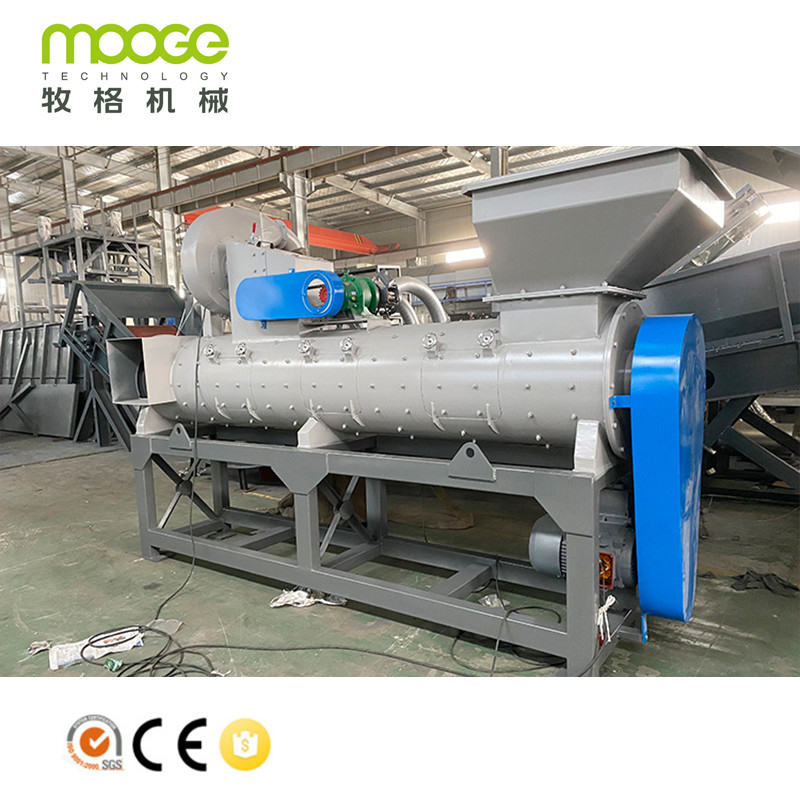

Label Remover Machine

Machine made by solid frame, on the top there is glass window easy to clean the machine and checking inside.

The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Rotary Blade

Blade made by alloyed steel for long time use.

Blade is fixed by screw on the rotor easy to adjustable and changeable.

Rotor blades: 96 PCS for LMD-15

Fixed Blade

Blade material: D2

Channel Iron: Stainless Steel

Label Remover Machine Rotor

The rotor feeder part with screw so no bottles pop out.

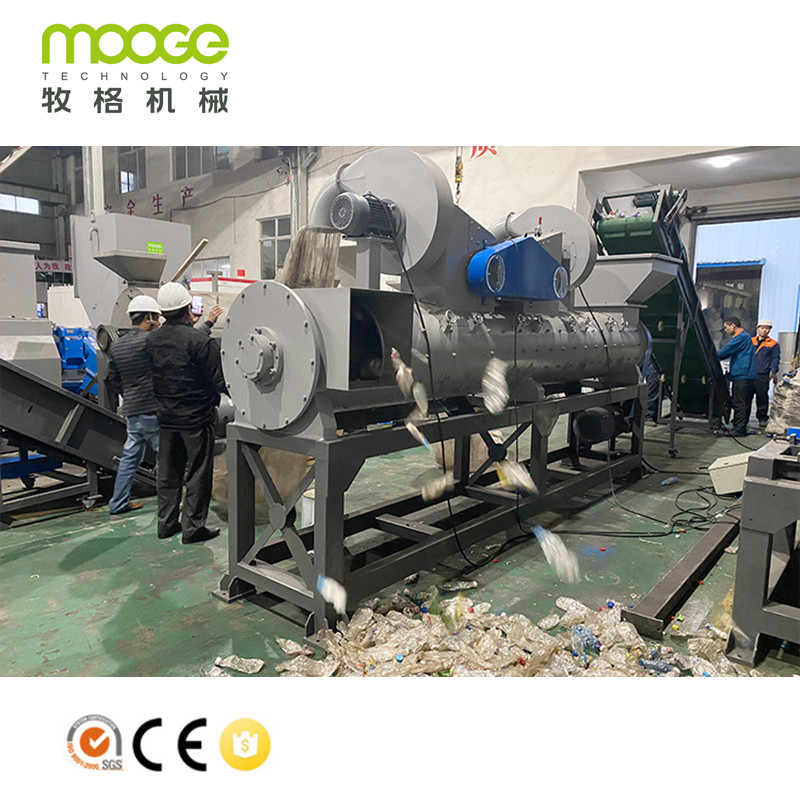

Label Remover Machine Producing-1

Label Remover Machine Producing-2

Label Remover Machine Producing-3

After Remove---Round Bottle

After Remove---Baled Bottle

Customer Show

Label Remover Machine in Malaysia

Label Remover in South Africa

Label Remover Machine in UK

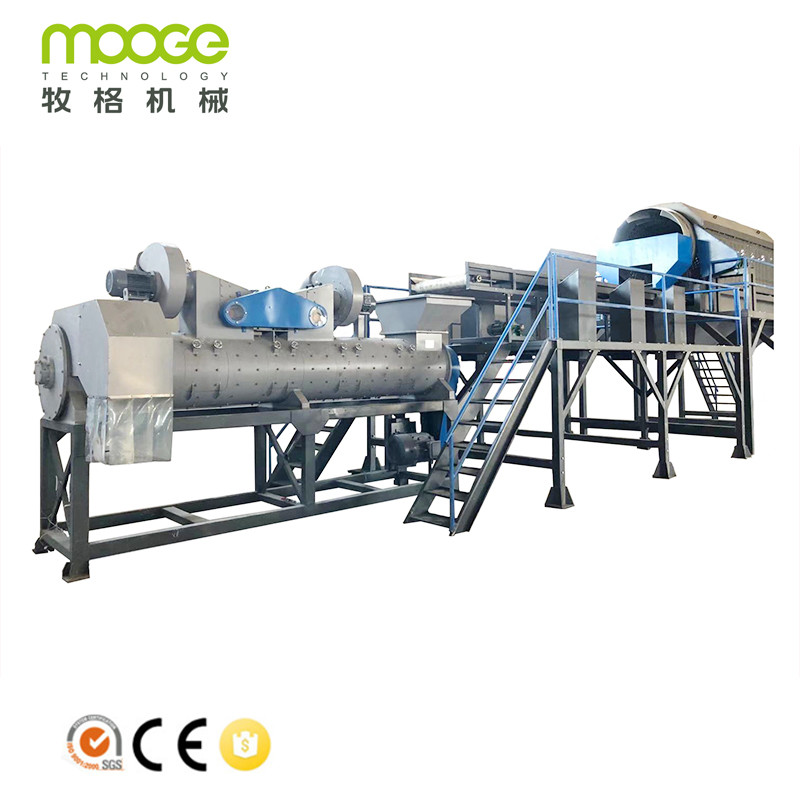

Auxiliary Machine

PET Bottle Washing Line

S-Series Crusher Machine for PET Bottle

Packing & Delivery

Our Exhibition

After Sales Service

Before Sales Service

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine

On Sales Service

1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

After Sales Service

1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
